INTRODUCTION:

1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.

2.Automatic power system, frequency converter control, automatic board input system.

3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2℃.

5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

7.Lead-free solder furnace with independent design, environmental protection and safety,

easy to clean.

8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.

9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

10.With black box memory function, the machine can always store the production management records, improve work efficiency.

11.Automatic claw cleaning function ensure the cleanliness of claws.

12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.

Specification:

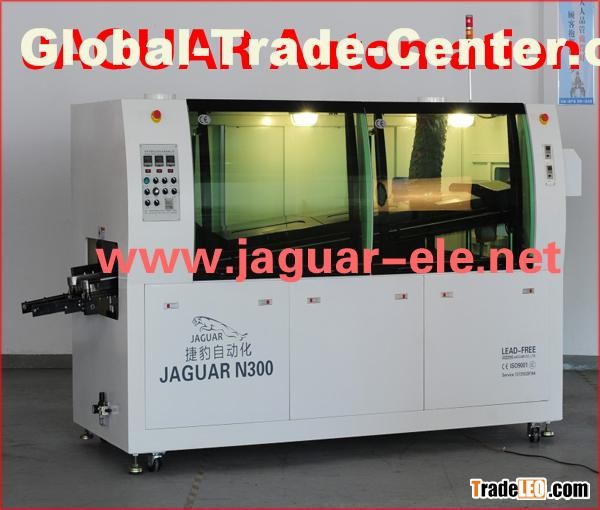

Model No.: JAGUAR N300

Number of heating zones: 2

Length of heating zones: 1200mm

Body size: 2800(L)*1250(W)*1560(H)

Outside dimension: 3600(L)*1250(W)*1560(H)

Weight: 1000KG

Total/running power: 16KW/6KW

Air supply: 0.5MPa

Preheating method: IR(standard)/Hot air

Preheating power: 220V 6KW

Control  method: PC +PLC/Touchtone/Touch screen

Range of temp. control: Room temperature---300℃

Preheating time: about 10-15mins for setting 150℃

Solder type: Lead-free / Sn-Pb

Solder pot capacity: 280KG

Solder pot temperature: 300℃

Solder power: 380V 8KW

Solder temp. control method: PID&SSR

Wave crest drive power: 1KW 220V

Warm-up time of solder: about 120mins for setting 250℃

PCB  width: 50-300mm

Convey  speed: 300-1800mm/min

Convey  direction: L→R (R→L optional)

Convey   angle: 4-7°

Flux pressure/capacity: 3-5 bar/6L
