Introduction:

1. Automatic conveying power system and auto synchronous board feeding functions.

2.Tin stove peak uses  frequency conversing speed adjustment which can independently control the wave peak height.

3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4. PLC is used to control the machine, to ensure the reliability and stability of the system.

5.With Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit board bottom, fast heating and stimulate the full activity of flux.

6.Special alloy transportation chain claws, non-stick tin and ensures the

quality of welding PCB board.

7.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

8. Lead-free solder furnace with independent design, environment protection and safety, easy to clean.

9. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2℃.

10.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

11.automatic claw cleaning function ensure the cleanliness of claws.

12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.

Specification:

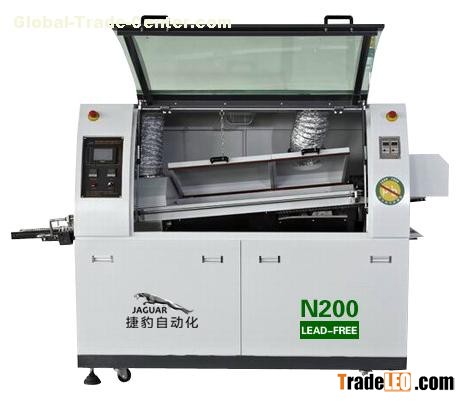

Model No: JAGUAR N200

Number of heating zones: 1

Length of heating zones: 800mm

Body size: 1400*1200*1560mm

Outside dimension: 2100*1200*1560mm

Weight: 500KG

Total/running power: 16KW/3KW

Air supply: 0.5MPa

Preheating method: IR(standard)

Preheating power: 220V 5KW

Control  method: Press key +PLC

Range of temp. control: Room temperature---300℃

Preheating time: about 10-15mins for setting 150℃

Solder type: Lead-free / Sn-Pb

Solder pot capacity: 180KG

Solder pot temperature: 300℃

Solder power: 380V 6KW

Solder temp. control method: PID&SSR

Wave crest drive power: 500W 220V

Warm-up time of solder: about 120mins for setting 250℃

PCB  width: 30-250mm

Convey  speed: 300-1200mm/min

Convey  direction: L→R (R→L optional)

Convey   angle: 4-6°

Flux pressure: 3-5 bar

Flux capacity: 6L
