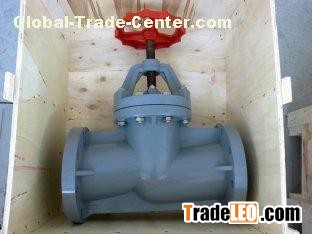

20mm, 40mm, 50mm CPVC Flange end 2 Way Globe Gate Valve, 1.0Mpa medium pressure valve
Specifications:
| Norminal size | D1 | D2 | L | b | H | n | Φ | ||
| JIS | DIN | ANSI | |||||||
| 1/2"(D20mm) | 70 | 65 | 60 | 95 | 160 | 15 | 160 | 4 | 14 |
| 3/4"(D25mm) | 75 | 75 | 70 | 105 | 160 | 16 | 160 | 4 | 14 |
| 1"(D32mm) | 90 | 85 | 80 | 115 | 160 | 16 | 160 | 4 | 14 |
| 1-1/4"(D40mm) | 100 | 100 | 89 | 135 | 180 | 16 | 170 | 4 | 18 |
| 1-1/2"(D50mm) | 105 | 110 | 100 | 145 | 200 | 18 | 185 | 4 | 18 |
| 2"(D63mm) | 120 | 125 | 120 | 160 | 230 | 25 | 185 | 4 | 18 |
