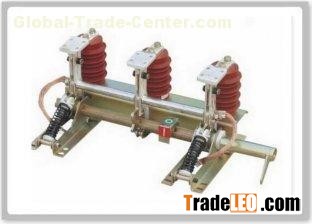

JN15 - 12 / 24 ( 40.5 ) Indoor AC High Voltage Earthing Switch For Energy Engineering
Technical Specification
| Item | Unit | Data | Data | Data |
| Rated voltage | kv | 12 | 24 | 40.5 |
| Rated short time withstand current | kA | 31.5, 40 | 31.5, 40 | 31.5 |
| Rated short circuit duration | s | 4 | 4 | 4 |
| Rated peak withstand current | kA | 80, 100 | 80, 100 | 80 |
| Central distance between poles | mm | 150, 210, 230, 250, 275 | 210, 230, 250, 275 | 350, 385, 460 |
| 1min PF withstand voltage | kV | 42/49 | 50/60 | 95< Contact Infomation
