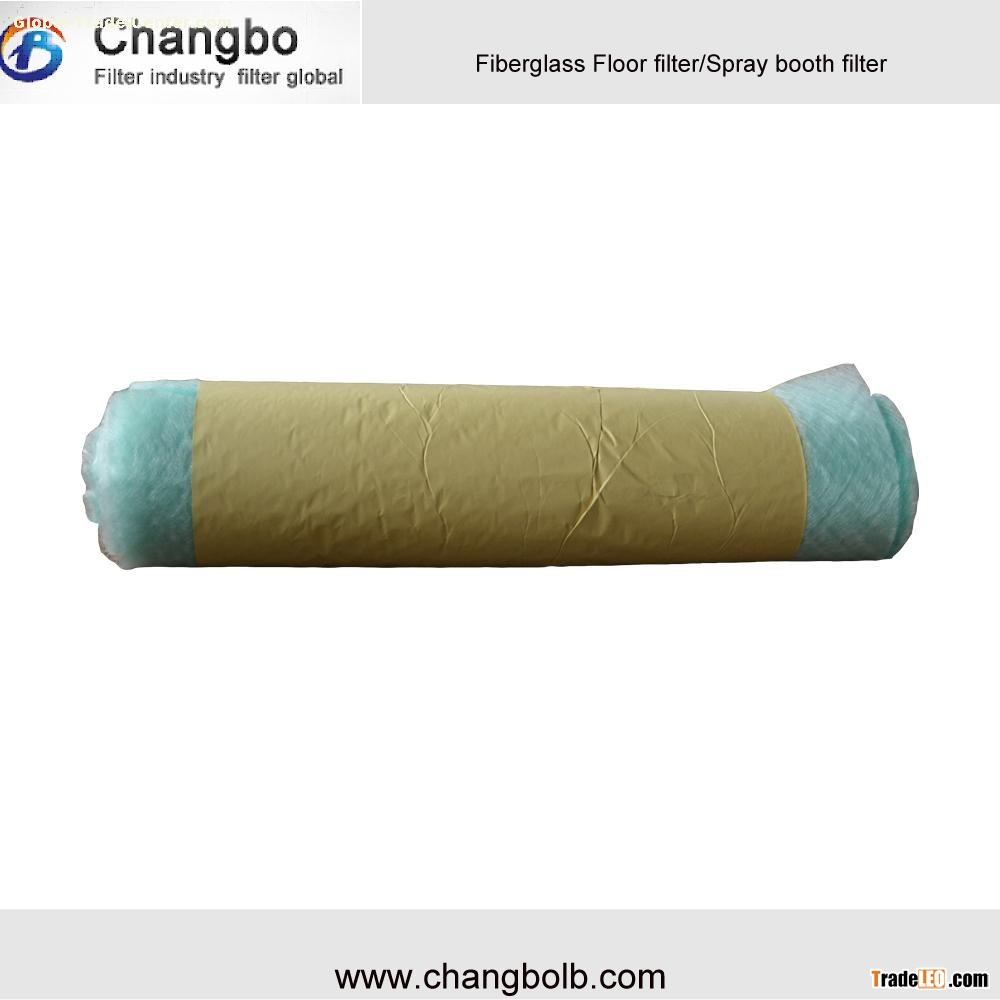

Brand:Chagnbo
Model:CF-60
MOQ:-0 -
Application:
1. Capturing mist from spray booth and painting equipment system
2. Adsorping the soot from kitchen and chemical industry
3. Make the exhaust gas environmental.
Filter material and features:
* Fiber glass with gradual density, inlet side is green, outlet is green.
* Low compressibility, even under heavy paint-load. High arrestance, especially under high paint spray exposure, economical.
* Progressive structure, the density of fiber layers increases towards the clean air side. The whole depth of the nonwoven can be used for the dust storage.
* Certified EN779
* Temp. resistance: 170°C
* Served in roll or piece
Specifications:
| Model | CF-50 | CF-60 | CF-100 |
| Material | fiberglass | fiberglass | fiberglass |
| Air velocity | 2 m/s | 1.5m/s | 1.5m/s |
| Humidity resistance | 100% | 100% | 100% |
| Initial resistance | 25pa | 20pa | 20pa |
| Final resistance | 250pa | 250pa | 250pa |
| Temperature resistance | 170°C | 170°C | 170°C |
| Thickness | 50mm | 60mm | 100mm |
| Dust holding | 3-5kg/m2 | 3-5kg/m2 | 3-5kg/m2 |
| Filtration class | G3 | G3 | G4 |
| Normal size | 1m*20m 2m*20m | 1m*20m 2m*20m | 1m*20m 2m*20m |
Why us
1) We are awarded the
2) Over 8 years experience in the export of air filters
3) ISO 9001 and UL Certified
4) Fast delivery, usually within 2 weeks
5) Competitive price as we have our own factory
You are always welcome to have a visit of our plant
