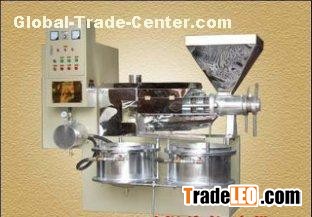

Sesame Seed Production With Long Life 200 - 400kg / h Rice Bran Oil Machine
Owners’ manual for intelligent oil filter
1, At first, check the retaining screw, and confirm the rotating direction before power on.
2, Pull on the timing switch, the machine starts to work.
3, Fall the crude oil into the hopper (added with salt water).
4, Place the container both for oil and dregs.
5, Automatic dregs deslagging machine, worker only has to turn the machine back , the dregs will deslag automatically.
Dregs deslagging machine by hand, fix the rotor firstly, turn the machine 1-2 times from left to right, and then take the dregs out by spoon.
Model | HY-16120 | |
Worm Diameter | 120mm | |
Worm rotating speed | 35-55r/min | |
Incircle diameter of worm | 123mm | |
Motor | Main part | Y132M-4 11KW |
Vacuum pump | 2X-8A1.1KW | |
Capacity | 200-400kg/h | |
Weight | 1400Kg | |
Dimension | 2500×1300×1700 | |
FOB Qingdao (USD) |
|
Advanced characters of intelligent centrifuged oil filter: no filter cloth; safe; high oil rate; patented product and easy operation.
Advantages:
1, Intelligent operation
Workers only have to fall the crude oil into the feed inlet, the machine will feeding, separating dregs, discharging, deslagging automatically, and power off. The labor intensity is 90% less than the common ones.
2, Intelligent reaction
No chemical reaction, no add any chemicals, no decoloration, no flavor, no dreg, no oil smell, be sure of the original tasty of oil. The oil is clean and healthy.
3, Intelligent dre
