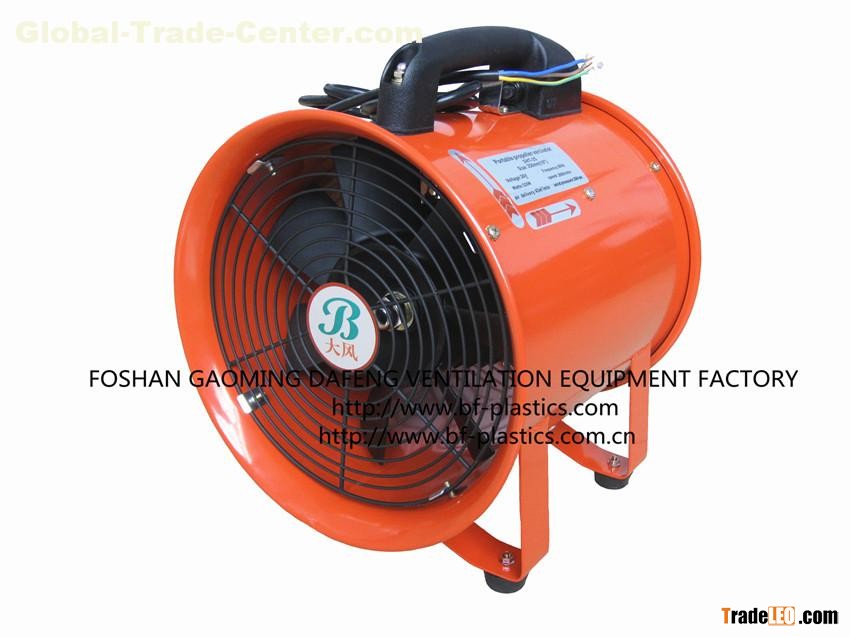

Air supply and exhaust blower fan 36V in red

Material

1. Ventilator shell: made of hot-dipped galvanized sheet which has spray painted automobile coating on its surface

2. Impeller: made of aluminum casting alloy, 7 blades.

3. Fan guard: dusting, zinc coating

4. Switch: Push button.

5. Integrated plastic handle for easy carrying.

6. Motor: It is wrap around with international standard copper wire

7. With radiating rib aluminum casting integrated motor shell.

8. The capacitance is made inside to avoid of any damage during transportation.

                                                                      OLD DESIGN

                                        NEW DESIGN

Features

Strong air pressure, high rotational speed and air volume, strong suction, reasonable structure and superior performance

Available sizes:

1. 200mm, 250mm, 300mm, 350mm,light weight with handle, have a integrated switch

2. 400mm, 450mm, 500mm, 600mm, can equipped with a stand in order to adjust the blowing angle. There are handles on both sides for easy carry.

Voltage: 36V, 110V,220V,380V,440V.

Frequency: 50Hz, 60Hz, 50/60Hz universal type

Plug: European, American, British, Japanese, etc.

Application

1. Exhaust and supply flesh air in remote or deep operating zone, confined space construction and other bad air environment.

2. Exhausting welding waste gas, smoke, dust, the smell of paint during shipbuilding and maintenance.

3. Field of machinery, chemical industry, plant warehouse, underground sinking and driving engineering
