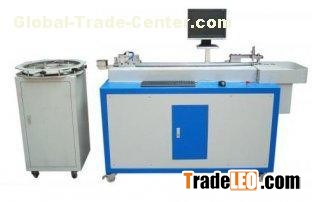

Automatic Bending Laser Template Cutting Die Making Machine SBS330B
The beder is for die maker factory which has patent
All Automatic
Bridging, lipping cutting
Die cutting Auto Bending machine SBS330B
Technical parameter
|
Parameter | Steel Rules Thickness (mm) | |||||
| 0.45 | 0.53 | 0.71 | 1.07 | |||
| Steel Rules Height(mm) | 7-25 | 7-25 | 7-25 | 25 | ||
| Max. Angle | 110º | 110º | 100º | 90º | ||
| Min. Arc 90º Radium (mm) | 0.5 | 0.7 | 1.0 | 1.5 | ||
| Min. Foreside Bending Length (mm) | 1.5 | 1.5 | 2.5 | 4.0 | ||
| Min. Rearward Cutting Length (mm) | 1.0 | 1.0 | 1.5 | 2.0 | ||
| Feed-in Accuracy | 0.05mm | |||||
| Bridges | Automatic Bridges Punching | |||||
| Straight Cutting | Automatic Straight Cutting or Swaying off | |||||
| File Format | dxf, wd, format | |||||
| Weight | 450kg | Size | 2650×1200×990 | |||
| Power Requirements | 50/60Hz Single-Phase110V/220V | Air Pressure | 5-7kgf/cm2 | |||
| Power | 2kw | Computer Collocate | P4, 1G, 17″LCD | |||
| Outfit Dies | 1.Two Contact Infomation
