Description:
Adopt urgent stop switch and reinforced breaking switch with position limit.Protection class up to IP54.With thermal prevention device.

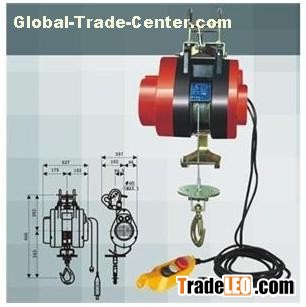

Suspending Mini Electric Hoist
| Model | Rated load (kg) | Rated volt(V50/60Hz) | Input power (w) | Cable diamter (mm) | Lifting speed (m/min) | Lifting height (m) | G.W./N.W. (Kg) | Packing size (cm) |
| HXS-100F | 100 | 220 | 580 | 3.8 | 15 | 20 | 30/28 | 42.5x37.5x37 |
| HXS-150F | 150 | 230 | 780 | 3.8 | 15 | 20 | 30/28 | 42.5x37.5x37 |
| HXS-200F | 200 | 240 | 1050 | 5.1 | 12 | 20 | 32/30 | 42.5x37.5x37 |
| HXS-250F | 250 | 110 | 1200 | 5.1 | 12 | 20 | 32/30 | 42.5x37.5x37 |
The load rated are based on the last layer of wire rope.
With emergency stop switch
Reinforced breaking switch with position limit
Protection class up to Ip54
With thermal prevention device
Light weight, compact deaign allow mounting convenient
When rope touches the limit arm, stopped automatically
Induction-motor stops when the rope is recerse wending
Dynamic brake designs for both static and dynamic loading
It operates on household power source
