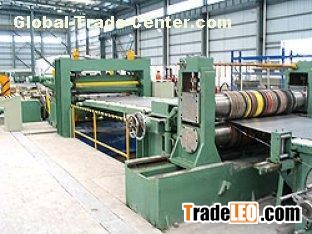

3-16mm Slitting Machine

Technical Parameters

1. slitting material: cold/hot rolled coil, yield intension ≤700N/mm2; pulling intension: ≤800N/mm2

2. thickness: 3 - 16mm;

3. slittted max width : 600-1800mm;

4. slitted tolerance(width): ±0.10mm;

5. speed: 0 - 40m/min;

6. de-coiler capacity: max. 30T;

7. coil inner diameter : Φ500mm-Φ800mm

8. coil out diameter: ≤Φ2100mm;

9. slitting knife diamter: Φ260mm; material: 40Cr

10. slitting knives size: Φ260XΦ350x25; 28PCS

11. slitting knives material: 6CrW2Si

12. the knife hardness: HRC58°60°;

13. re-coiler diamter: Φ760mm;

14. electrical resource: 380V, 3 phase, 50Hz; or up to the customers requirements.

15. electrical control components are subject to GB standard.
