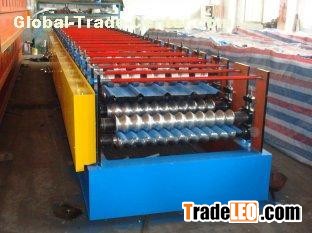

The line adopts dual-layer roll forming with high quality, can produce two types of roof panel. The products are high quality, durable and beautiful, which are widely used in industry construction, warehouse, large-span housetop, wall and so on.

Components
1. Manual/Hydraulic Decoiler

2.Sheet Guiding Equipment

3. Mainframe Transmission

4. Roll Forming Unit

5. Hydraulic Cutting Unit

6. Hydraulic Station

7. Product Table

8. PLC Control System


Technical Data

thickness: 0.3-0.8mm

coil width: 1250mm

forming stands: 16-21

forming speed: 10-15m/min

forming shapes are according to clients' requirements

Working Flow

Decoiling-> Roll Forming-> Cut to length-> Output Table
