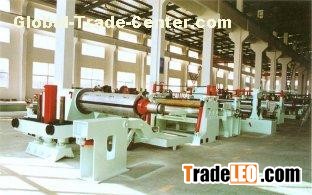

Slitting Machine for Silicon Steel(0.23-1.0mm), width 1000/1250mm, high precision, high speed slitting

Main technical data:

Material: grain oriented and non oriented electrical steel strip

Thickness:0.23mm-0.5mm

Coil width:1000/1250mm

Max. coil outer diameter:1200mm

Coil inner diameter: >=508mm

Max. coil weight: 6000kg

Max. line speed: 0-100m/min

Slitting width: Min. 25mm

Slitting width tolerance: Under ±0.02mm

Components:

Feeding trolley, hydraulic single-load un-coiler, feeding unit, plate head cutter, rectification unit, slitting cutter, scrap re-coiler, loop, pre-distribution & tensioning machine, rewinding machine, unloading trolley, hydraulic & electric control system
