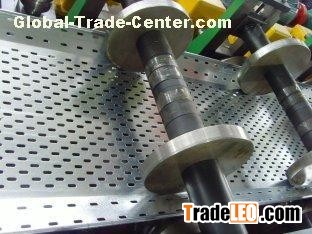

Cable Tray Roll Forming Machine

I.        WORK FLOW

Un-coiler – Feeder – Leveler – NC Feeder – Press Machine – Roll Former – Hydraulic Cutter – Rack – Electric Control

II.      LINE EQUIPMENT

1.      Un-coiler……………..…………………………….....…………..1 set

2.      Feeder & Leveler……………………………….…….................1 set

3.      NC Feeder & Press Machine………………………………..…1 set

4.      Roll former………………………….….…………………………1 set

5.      Hydraulic Cutter………………………………………………….1 set

6.      Run-out Rack………………..........................................................1 set

7.      Hydraulic Pump Station……………………….…………………1 set

8.      Electric Control Cabinet……….................................................…1 set

III.    SPECIFICATION:

²        Suitable steel coil: GI coil, carbon steel, etc

²        Material thickness: 0.5-1.5mm, 1-2.5mm

²        Cable tray width: 100-600mm or as per need

²        Machine work speed: 5-15m/min

²        Power supply: AC380V±10%, 50Hz

²        Total line length: about 18 meter

²        Total gross/net weight: approx 15 tons
