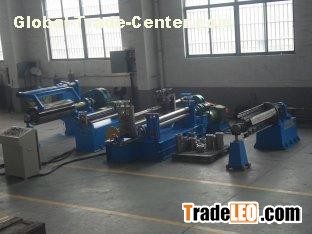

380V Semiautomatic Steel Coil Slitting Line Machine with Common Carbon Steel Sheet

Consist of the slitting line

 COIL CAR

UNCOILER

HOLD DOWN ROLL

LEVELER

SHEAR

SIDE GUIDE

 SLITTER

 SCRAP WINDERS

 LOOP TABLE

 TENSION STATION

 SEPARATOR

 RECOILER

Descriptions:
Components of the 1300 semiautomatic slitting line: coil car, hydraulic decoiler, slitter, hydraulic tension station, hydraulic recoiler

Main parameters:
Size(mm):20000*6000*2000
Material: common carbon steel sheet, zinc-plating roll sheet, stainless steel sheet
Material quality: steel coil
Thickness(mm): 0.2-1.5
Width(mm): 1250
Coil I.D(mm): f508
Coil O.D(mm): f1500
Coil weight: 11t(max)

Slitting product:
Coil I.D: f508mm
Slitting tolerance thickness:1.0mm?.03mm(max)
Slitting burr thickness: 1.0mm=0.03mm(max)
Minimal width :12mm
Slitting number: 20(coil thickness 0.5mm)
16(coil thickness1.5mm)
Electric power: 380V/50HZ/3PH
Capacity: 100KW
Speed: 0-80m/min
Slitting type: rolling shear
