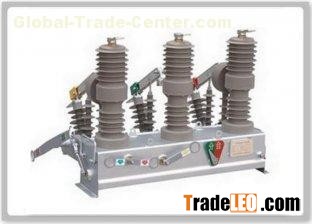

ZW32 - 24 Type Three - Phase AC Outdoor Vacuum Circuit Breaker, Motor' s Rated Power 40W
Technical parameter
| Table 1 Circuit Breaker's Main Technical Data | ||||
|
|
|
| Data | |
| NO | Item | Unit | 24kv | |
| 1 | Rated voltage | kV | 24 | |
| 2 | Rated frequency | Hz | 50 | |
| 3 | Rated current | A | 630/1250 | |
| 4 | Rated short circuit breaking current |
| kA | 20/25 |
| 5 | Rated peak withstand current |
| kA | 50/63 |
| 6 | Rated short time withstand current/ lasting time | kA/s | 20/4 , 25/4 | |
| 7 | Rated short circuit closing current(peak) |
| kA | 50/63 |
