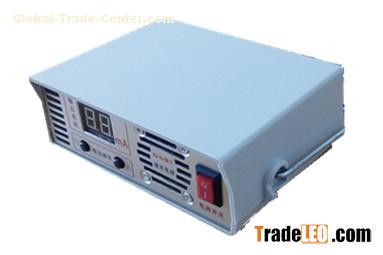

He-Ne laser power supply He Ne laser tube driver helium-neon
1. Main features:
1. Specificity: This power supply is specially designed for Ne-He laser tube. It can make He-Ne laser tube more easier to start.
2. Advanced technique: This power supply adopts soft switching technique. It promotes efficiency, improve reliability and reduce interference.
3. The start and stop of laser can be easily controlled by TTL level.
4. This power supply has current regulation function which can realize optional regulation of He-Ne laser tube’s output power.
5. This power supply can accurately control current output. It makes output power of He-Ne laser tube very stabile.
2. Specification:
| Input | Input voltage | AC220V or AC110V (Please specify when placing orders) | ||
| AC Frequency | 47---440Hz | |||
| Max Input power | 10-200W | |||
| Max Input current | 3A | |||
| Output | Max Output voltage | DC 25KV | | |
| Max Output current | DC 20 mA | | | |
| Efficiency | ≥90%(Full load) | |||
| MTBF | ≥10000 Houre | |||
| Withstand Voltage | Input-Output,Input-Enclosure:AC1500V 10mA 60s | |||
| Environment | Operating temperature:(-10-40)℃, Relative humidity: ≤90% | |||
| Cooling | Natural cooling | |||
| Dimension | L×W×H=170×142×80(mm) | |||
