Brand:siadgas
Model:KZO-100
MOQ:1 Sets
1.Technical Property( oxygen plant generator ):
| Production, Purity, Pressure (Outlet the Cold Box): | ||||
| medium | Production (Nm3/h) | Purity | Pressure(MpaG) | |
| Oxygen | 100±5% | ≥99.6%O2 | ~15 | |
| Product Production State(0 ºC, 101.325Kpa) | ||||
| Start-up pressure | 1.3MPa(G) | |||
| Running period | 12 Months | |||
| Start time needed | ~10H | |||
Notice: all the output can be designed according to customer’s requirements. Our KZO model production ability range from20~500.Above is just for your referrence. If you have any questions, please feel free to cantact us.

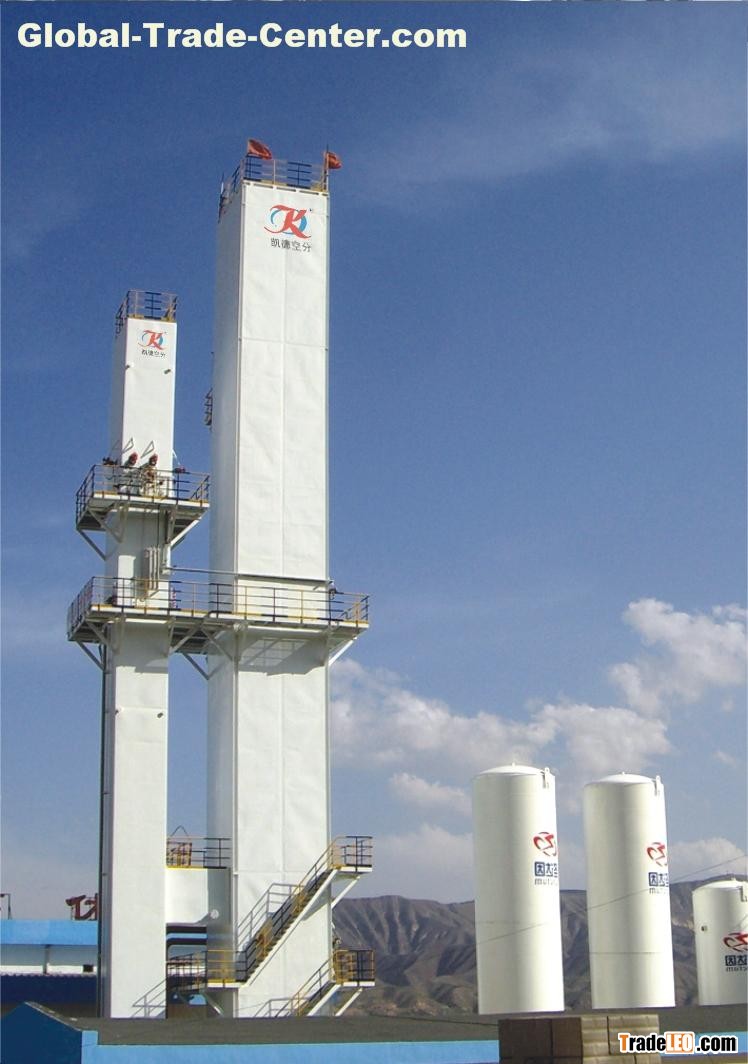

2.Product name: KZO-100 ASP oxygen plant generator
A complete set of oxygen plant generator is composed by air filter, air compressor, pre-cooler( pre-cooling system), refrigeration units, molecular sieve purifier(purifying system), fractionating column, turbo expander, instrument control.
3.Process Flow Description:
