Brand:SYMH
Model:6814
MOQ:600 Pieces
Send Inquiry

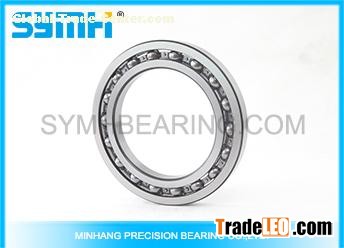

6814 Bearing type:Deep Groove Ball Bearing, Dimensions: 70 x 90 x 10 mm, Capped variants: 6814ZZ, 6814VV, 6814DD.
SYMH 6814 Deep Groove Ball Bearings specification:
| New Model: | 6814 |
| Inside diameter (ID d): | 70 mm |
| Outside diameter (OD D): | 90 mm |
| Thickness (B/T/H): | 10 mm |
| Basic dynamic load rating (Cr): | 12.1 kN |
| Basic static load rating (Cor): | 11.9 kN |
| Reference speed (Grease rpm): | 6800 r/min |
| Limiting speed (Oil rpm): | 8100 r/min |
| Weight, Mass (M): | 0.134 kg |
| Brand: | KOYO |
| Bearing type: | Deep Groove Ball Bearings |
| Other models 6814 Bearing with the same size: |
| Model
