Brand:SYMH
Model:6809
MOQ:1000 Pieces
Send Inquiry

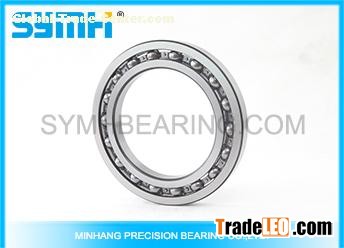

6809 Bearing type:Deep Groove Ball Bearing, Dimensions: 25 x 37 x 7mm, Capped variants: 6809ZZ, 6809VV, 6809DD. Contact us for the more bearings and prices details.
| Model: | 6809 |
| Inside diameter (ID d): | 45 mm |
| Outside diameter (OD D): | 58 mm |
| Thickness (B/T/H): | 7 mm |
| Basic dynamic load rating (Cr): | 6.2 kN |
| Basic static load rating (Cor): | 5.4 kN |
| Reference speed (Grease rpm): | 11000 r/min |
| Limiting speed (Oil rpm): | 13000 r/min |
| Mass (M): | 0.04 kg |
| Brand: | SYMH |
| Bearing type: | Deep Groove Ball Bearings |
