Cast Steel and Stainless Steel strainer

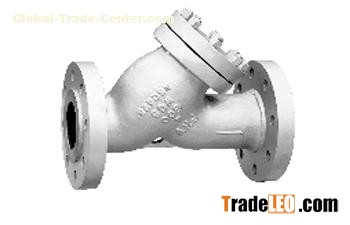

ANSI Y Strainer
Main parts and materials:
| Parts name | material | ||
| Body、Bonnet | ASTM A216 WCB | ASTM A315 CF8 | ASTM A315 CF8M |
| Screen | ASTM 182 F304 | ASTM 182 F304 | ASTM 182 F316 |
Standards
| Design and manufacture | Face to face | Flange end | Inspection |
| B16.34 | ANSI B16.10 | ANSI B16.5 | API 598 |
Test pressure
| Nominal pressure | Shell testing | Air seat testing | Seat testing |
| Class 10 | 3.0 | 0.6 | 2.2 |
