Brand:GOOLE,OEM
Model:-
MOQ:-0 -

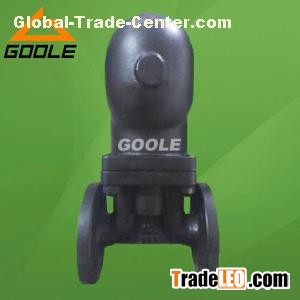

Product: GAFT43 ball floatsteam trap.
Pressure Rating: 1.6- 4.0Mpa.
Specification: DN25.
Material: cast steel.
Standard flanges: DIN, ANSI, JIS, JB79.
Structural Characteristics.
1.The valve adopts two kinds of sealing,e,g,balance double valve seat and single valve seat with reliable closedown and long life.
2.There's always condensate water available in front of the valve with reliable water sealing and non-leakage of steam.
3.No noise before operation in favor of environmental protection.
4.At the beginning of ventilation,all the valves start and lowtemperature condensate water and air are rapidly expelled to greatly shorten the start time for equipment.
5.Internal component is made of stainless steel, corrosion and cavitation erosion proof.
Main Technical Parameters&Indexes Of Performance.
| Nominal pressure | PN16 |
| Maximum design pressure(PMA) | 16bar g |
| Maximum design temperature(TMA) | 300 |
| Minimum design temperature(TMI) | -10 |
| Maximum upstream pressure for saturated steam service(PMO) | 13bar g |
| Maximum operating temperature(TMO) | 300 |
| Minimum operating temperature(TMIO) | 0 |
| Maximum differential pressure( PMX ) | GAFT43-4.5 4.5bar |
| GAFT43 -10 10bar | |
| GAFT43 -14 14bar | |
| Maximum cold hydraulic test pressure | 24bar g |
Material Of Main Component.
| Name of component | Material of component |
| Valve body, valve cover | WCB |
| Floating ball | stainless steel |
Connecting Dimension.
| DN | A |
| 25 | 160 |
