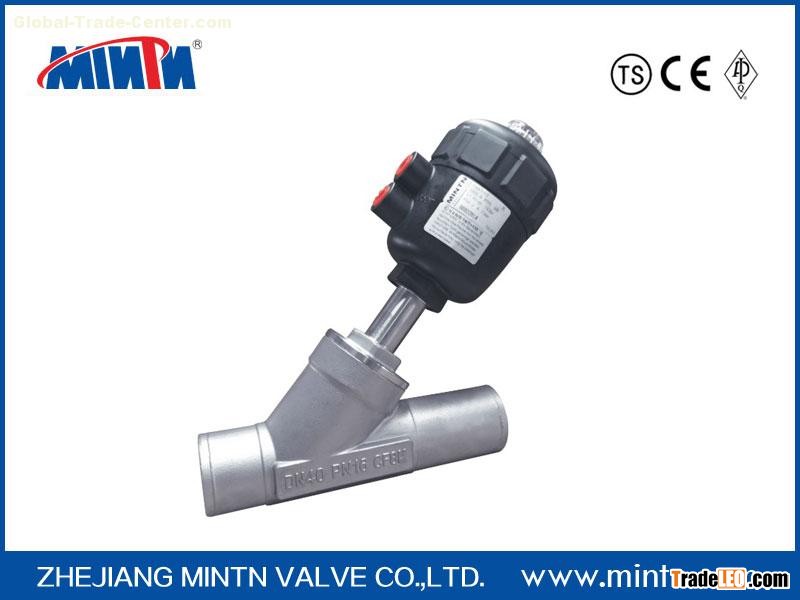

Technical data:

Fluid Pressure : Max×1.6MPa（232psi）

Control Pressure：0.3-0.8MPa（43.5-116psi）

Control Fluid：Neutral gas，Air

Actuator Size：27mm，32mm，40mm，50mm，63mm，80mm，100mm，125mm

Applicable Fluid：Water，Alcohol，Oil，Dye，Steam，Neutral gas or liquid，Organic solvent，Acid and lye

Fluid temperature：-10℃-+180℃，25℃-+220℃

Ambient temperature：-10℃-+80℃

Control Type：Normally closed，Normally open，Double acting

Connection: Threaded(BSP.BSPT,NPT),Welded, Flanged, Tri-clamp

Main Materials ：

Body Material：CF8M(SS316),CF8(SS304)

Seals Material：PTFE

Actuator Material：PPS

Applications:

Beer& Drink Filling Machinery

Textile printing& Dyeing
Gas industry
Pharmacy& Medical Equipment
Chemical industry
Disinfection
Frothing Equipment
Water/sewage Disposal

Advantages:

1.Large Flux, low Resistance, No Water-hammer Y-type Shape Enlarged The Flowing Section, which Could Raise The Flux By 30% And Make Flow More Smooth
2.Super Long Life.
3.Which Help The Stem Adjust And Lubricate Itself Automatically.
