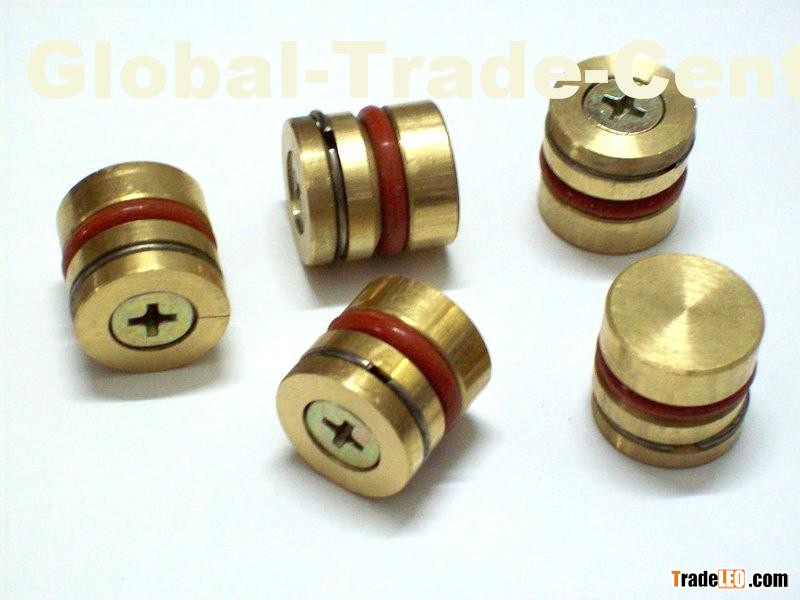

Cooling circuit plugs,mold part:

based on the water flow directions, any of the cooling and heating systems will have the fitting function in the plastic molds.

Cooling circuit plugs,plastic mould part feature, how to use it:

1. when installing into molds,please make use the space is at least 0.1mm wider than cooling circuit plugs;

 2. if there is no specific setting for the cooling circuit plugs:first release,then using the air spary to reset,According to sloping method, the O-ring and springs will enlarge to fit the cooling circuit plugs.

Pressure capacity: using :8mm cooling circuit plugs for over 16kg/cm2;

10mm cooling circuit plugs for over 17kg/cm2;

12mm cooling circuit plugs for over 19kg/cm2.

Specialty:1. no tapping ,not rust;

2. can be adjusted for tightness;

3. can be placed at any water path and moved accordingly;

4.can be cooling down or heating up by water or oil;

5.under normal operating temperature-5+135°C;

6.special operating temperature -10+280°C.
