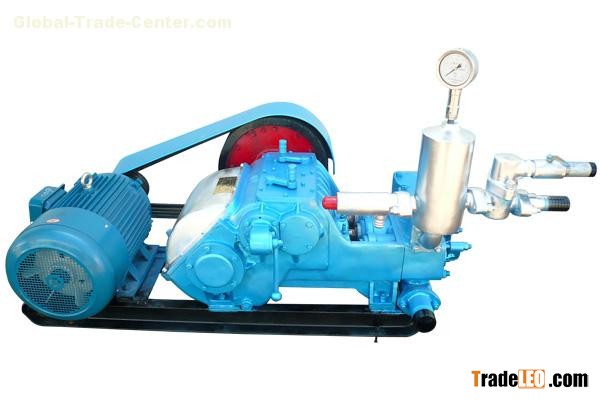

BW-600 mud pump
Reciprocating mud pump is horizontal triplex single acting piston pump. Deepest hole depth
according to use can adjust at will, can and 1800 m drilling rig, cement pump infusion is
also available.
| Mdoel | BW-600 |
| Impulse (mm) | 600 |
| Cylinder diameter(mm) | 100/80 |
| Maximum flow(L/min) | 600 |
| maximum pressure(Mpa) | 7 |
| driving power(KW) | 30 |
| Suction pipe diameter(mm) | 89 |
| Drain pipe diameter(mm) | 51 |
| Deep hole drilling(m) | ≤800 |
| Boundary dimension(mm) | 1000×995×650 |
| total weight(kg) | 700 |
