Brand:hw
Model:SUB-8A
MOQ:-0 -

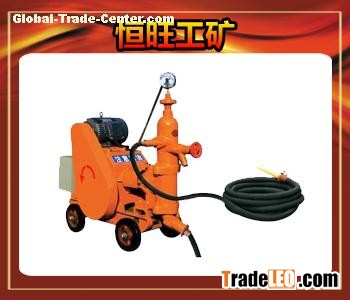

SUB-8A mortar pump/Sand Pulp pump/opaque syrup pump
This machine is absorbing advanced technology both at home and abroad.
developed into a new type of multi-functional construction machinery.
The product with wide range of use, can be used for building mortar conveying,
geotechnical engineering grouting large area coating, etc.
Its main characteristic is no pulse. Working pressure, large flow, high production
efficiency, convenient operation, safe and reliable, easy maintenance, compact structure.
| Item | Data |
| Ash content m³/h | 8 m³/h |
| Maximum working pressure(Mpa) | 8 |
| Vertical height of pump(m) | 80---100 |
| Horizontal conveying distance (m) | 250—300 |
| Power (kw) | 380v 11Kw |
| Piston cylinder number (pc) | 1 |
| Weight (KG) | 650KG |
Madery
Jining Hengwang Mining Machinery Co., Ltd.
