| | CNA2000 Non asbestos Sheet
Compressed fiber jointing based on Synthetic fiber with NBR binder.
Uses: General purpose commercial material suitable for oils, fuels, steam, water and gases, good sealing performance under hot oil, oil gas, etc.
|
| Operating Guidelines | | Maximum Temperature | 300oC | | Maximum Pressure | 100 bar | | Maximum Steam Temperature | 200oC | | Typical Original Properties (for all stress relaxation BS 7531 (400 Nmm2 ) DIN 52913 (500 N/mm2) ) | Thickness | | 1.5mm Thick | 2.0mm Thick | | Specific gravity | 1.90 | 1.90 | | Compressibility | ASTM F36A | 7-17% | 7-17% | | Recovery | ASTM F36A | MIN. 50% | Min. 50% | | Stress Relaxation | BS 7531 DIN 52913 | 22 N/mm2 - | - 24 N/mm2 | | Gas Leakage | DIN 3535/6 | 0.2 ml/min | 0.2 ml/min | | Typical Properties after Fluid Immersion (1.5 & 2.0mm Thickness) | | ASTM Oil 3 | 5 hours 150oC | 0-10% | | ASTM Fuel A | 5 hours20oC | 0-10% | | ASTM Fuel B | 5 hours20oC | 0-10% | | Water | 5 hours100oC | 0-10% | | |
CNA2000 available reinforced with mesh wire and both size graphite coating.

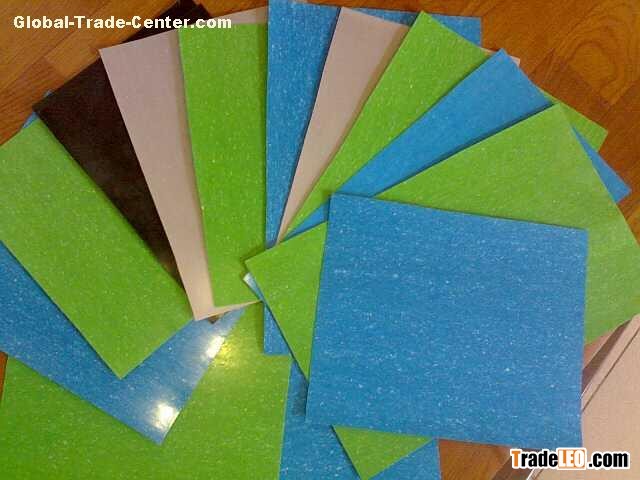

Colour: Green, Blue, Red, Black
Standard Size (mm):
1500 × 1000, 1500 × 2000
1500 × 1500, 1270 × 1270
Thickness (mm): 0.5 ~ 5.0 |
