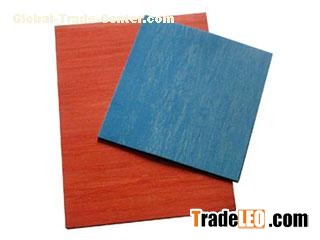

| | CNA3000 Non asbestos Sheet
Premium quality compressed fiber jointing based on Aramid fiber, Synthetic fiber with NBR binder.
Uses: General purpose material with excellent chemical resistance and mechanical properties. Suitable for use with air, steam, oil, fuels, gases. Particularly suitable for use in internal combustion engines, compressors and hydraulics applications. |
| Operating Guidelines | | Maximum Temperature | 370oC | | Maximum Pressure | 100 bar | | Maximum Steam Temperature | 200oC | | Typical Original Properties
(for all stress relaxation BS 7531 (400 Nmm2 )
DIN 52913 (500 N/mm2) ) | Thickness | | 1.5mm Thick | 2.0mm Thick | | Specific gravity | 1.90 | 1.90 | | Compressibility | ASTM F36A | 7-17% | 7-17% | | Recovery | ASTM F36A | MIN. 50% | Min. 50% | | Stress Relaxation | BS 7531DIN 52913 | 23 N/mm2- | -25 N/mm2 | | Gas Leakage | DIN 3535/6 | 0.2 ml/min | 0.2 ml/min | | Typical Properties after Fluid Immersion (1.5 & 2.0mm Thickness) | | ASTM Oil 3 | 5 hours 150oC | 0-5% | | ASTM Fuel A | 5 hours20oC | 0-5% | | ASTM Fuel B | 5 hours20oC | 0-5% | | Water | 5 hours100oC | 0-5% | | |
CNA3000 available reinforced with mesh wire and both size graphite coating.
Colour: Green, Blue
Standard Size (mm):
1500 × 1000, 1500 × 2000
1500 × 1500, 1270 × 1270
Thickness (mm): 0.4 ~ 5.0 |
