Reinforced Asbestos Composite Cylinder Head Gasket Sheet
2016-09-27 12:57 Views:156
Price:
0.00 USD/-
Brand:NGP
Model:NGP-SC90
MOQ:-0 -
Send Inquiry

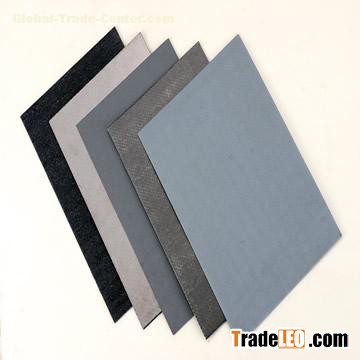

| | NGP-SC90 Reinforced Asbestos Composite Cylinder Head Gasket Sheet
Description：
Manufactured from asbestos beater sheet with tanged (perforated) of 0.18mm ~ 0.25mm tinplate inserted reinforcement. It is best material for cylinder head gasket, exhaust gasket and other engine gasket seal.
|
| Composite Type:
SC90-A Asbestos + Steel + Asbestos
SC90-B Asbestos + Steel + Asbestos + Steel + Asbestos
SC90-C Steel + Asbestos
SC90-D Steel + Asbestos + Steel
SC90-E Both Size Graphite Coating Reinforced Asbestos Composite Sheet
Product Data Sheet:
Density: 1.40g/cm3 Min
Compressibility: 8%--12%
Recovery: 45% Min
ASTM F146 3# OIL 150 C × 5h
Thickness increase: 15% Max
Weight increase: 10% Max
ASTM F146 Fuel B R.T × 5h
Thickness increase: 10% Max
Weight increase: 10% Max
Standard Sheet Size:
500mm x 1000mm
500mm x 1200mm
500mm x 1500mm
510mm x 1016mm
510mm x 1530mm
1000mm x 1000mm
1000mm x 1500mm
Thickness: 1.0mm ~ 2.5mm
The other size and thickness are optional or according to the requirements of customers
|
