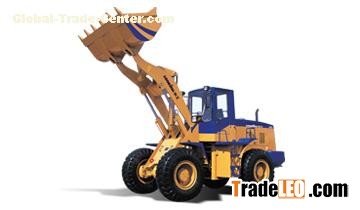

The rated payload of WL833 wheel loader is 3 tons, and the rated bucket capacity is 1.7m3. It is medium size wheel loader, and it is suitable for mine, water conservancy construction site, infrastructural construction, material loading/unloading field, road construction site and other work sites. The appearance is compact and nice. Good cost performance will help you create more fortune.

1.Hydraulic steering system, convenient and easy steering
2.frame style chassis structure, simple in structure and easy in maintenance
3.Air conditioning and heating system provide better operation environment
4.Front and rear frame use long span connecting structure for reduce the stress in hitch pin
5.Anti-abrasion integral cutting edge with teeth and adapters, prolong the life of bucket.
6.Long wheelbase and centrally symmetrical structure make the front and rear tracks superposed on each other for extending the life of tire.
7.Max. dumping clearance is 2900m, which can meet the loading demand of heavy truck.
8.Optional implements: High dump, Coal bucket, Log fork, Quick disconnect.

Operating weight (kg)                         10300
Transportation dimension
Length×width×height（mm）             6950×2500×3120
Wheelbase（mm）                           2850
Tread width（mm）                          1850
Rated payload（kg)                           3000
Bucket capacity（m3 ）                       1.7
Max. breakout force（KN）                   ≥101
Max.dumping height（mm）                  2900
Dumping reach（mm）                      1069
Lifting time of arm(s)                        ≤6.0
Total hydraulic cycle time(s)                   ≤10.5
Max. turning angle(°)                        35

Engine
Model                                          TD226B-6G
Type                    vertical, water-cooled, 4-stroke, direct injection
Rated power(Kw)/RPM（rpm）                     92/2200
Max. torque（N.m）/RPM（rpm）                860/1400~1600
Nominal fuel consumption（g/kw•h）               210
Total displacement （L）                         6.234
Working pressure of air compressor（Mpa）        0.78
Oil tank capacity
Hydraulic  oil tank capacity                     140
Fuel tank capacity（L）                          140

Torque converter and transmission system
Hydraulic torque converter
Type                                 single-stage, single-phase、three-element
Torque conversion coefficient Ko                  3.6
Cooling type                                  water-cooled
Torque converter inlet pressure (Mpa)           0.50~0.65
Torque converter outlet pressure (Mpa)          0.25~0.30

Transmission
Type                              Fixed shaft, power shift, spur gear, constant mesh
Gears                three speeds forward, three speeds reverse, flexible shaft type, hydraulic shifting
Travel speed  （km/h）
Ⅰ forward                                0~0.65
Ⅱ forward                                0~12.0
III  forward                              0~32.0
Ⅰ reverse                                0~6.8
II  reverse                               0~12.5
III reverse                               0~33.5

Axle and tire
Axle
Final drive type                       Spiral bevel gear one stage reduction
Speed reduction ratio                      5.286:1
Wheel hub reduction
Model                              spur gear planet drive
Speed reduction ratio                       3.882:1
Tire specifications                      17.5-25 12PR

Brake system
Service brake type                Single loop disc brake on four wheels
Parking brake type                Flexible shaft control disc type
Emergency brake                Compose with parking brake as two-in-one system
Brake pressure（Mpa）                     0.65~0.78

Implement hydraulic system
Displacement (L/min)                          80
System working pressure （Mpa）               15.7

Steering system
Type                               Full hydraulic steering system
Structure type                        Series connect with implement pump
System working pressure（Mpa）                14

Min.turning radius
Outside of bucket（mm）                      5600
Tire center（mm）                            4865

A/ C System
Refrigerating capacity (w)                  4500
Heating capacity  (w)                       5800

Note: The specification is subject to change for the modification without notice.
