| Lap Joint Flange | |||

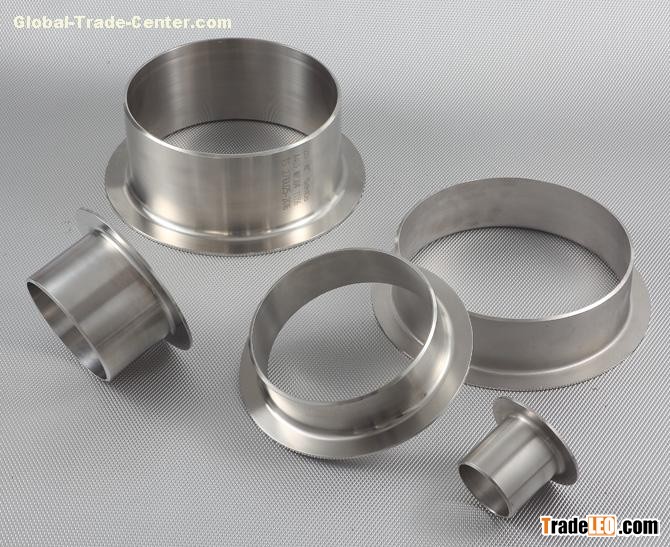

| Lap Joint Flange(Loose Flange) have all the same common dimensions as any other flange named on this page however it does not have a raised face, they used in conjunction with a "Lap Joint Stub End". | |||
| Size | |||
| Plate flange:1/4"-160" | |||
| DN8-DN4000 | |||
| Pressure | |||
| America Series:Class 150 ,Class 300, Class 600, Class 900A , | |||
| Class 1500,Class 2500. | |||
| Europe Series:PN2.5,PN6,PN10,PN16,PN25,PN40,PN63,PN100, | |||
| PN160,PN250,PN320,PN400. | |||
| Flange Facing Types | |||
| America Series:Flat face(FF),Raised face(RF),Tongue(T),Groove(G), | |||
| Female(F),Male(M),Ring type joints face(RJ/RTJ) | |||
| Europe Series:Type A(Flat Face),Type B(Raised Face),Type | |||
| C(Tongue),Type D(Groove),Type E(Spigot),Type F(Recess),Type G(O-Ring Spigot),Type H(O-Ring Groove) | |||
| Material | |||
| Carbon steel: ASTM A105,ASTM A105N,GB 20,C22.8. | |||
| Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911 | |||
| Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N | |||
| ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti | |||
| ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H | |||
| Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6 | |||
| High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70 | |||
| Standards | |||
| ASME ANSI B16.5,ASME ANSI B16.47. | |||
| API 605,API 6L. | |||
| MSS SP 44 | |||
| CSA Z245.12 | |||
| EN1092-1,EN1759-1. | |||
| DIN2573,DIN2576. | |||
| BS1560,BS 4504,BS 10. | |||
| AFNOR NF E29-200-1 | |||
| ISO7005-1 | |||
| AS2129 | |||
| JIS B2220 | |||
| UNI 2276. UNI 2277.UNI 2278 .UNI 6089 .UNI 6090 | |||
| Industrial Processes | |||
| Die forging,Machining | |||
