Brand:ESTAN
Model:nipoflange
MOQ:1 Pieces
Send Inquiry

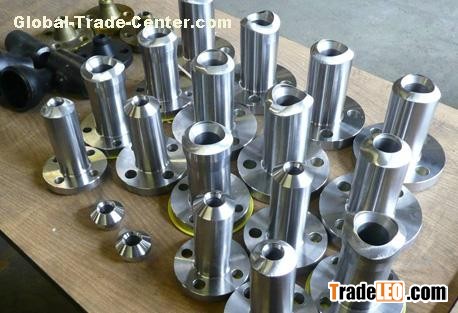

| A Nipoflange is used in the pipe industry like a weldolet or a nipolet for a 90° branch connection. A Nipoflange is a combination of weldolet, nipolet and flange. | ||
| Two different pipe branch connections | ||
| On the run pipe side a nipoflange is designed like a weldolet. That means the branch connection on the run pipe side is a welding connection. On the other side there it has a flange connection. The flange connection can be designed according to customers requirements (acc. To DIN or ANSI). | ||
| Material | ||
| A105,A106B | ||
| Standard | ||
| ANSI B16.5,JIS BS DIN GB NF GOST | ||
| Type | ||
| SO/WN/SW/TH/LJ/BL/RTJ etc | ||
| Size | ||
| 1/2"-24" 26"-72" | ||
| Pressure | ||
| Class150-2500 | ||
| Surface | ||
| Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint, Zinc Galvanized, Flame plating etc | ||
| Facing | ||
| RF,FF,RTJ etc | ||
| Producing process | ||
| Billet-cutting-forging-heating-lathe-drilling-inspection-marking-packing-export-ANSI flange | ||
| Package | ||
| Plywood cases or pallet ,or as customers' requirement | ||
| Applications | ||
| Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc | ||
| Inspection | ||
| Forged Flange accept Factory in-house or third party inspection | ||
| flange Process | ||
| Forged | ||
