Brand:ESTAN
Model:forged flange
MOQ:1 Pieces
Send Inquiry

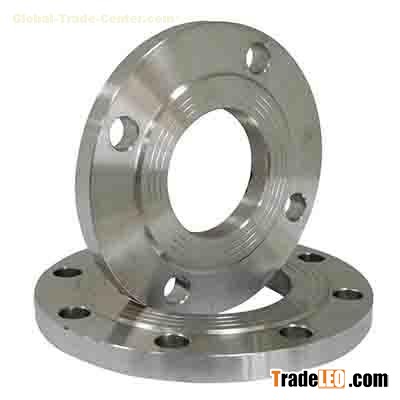

| Slip on flange is a type of steel flange which slides over the end | |||||
| of piping and then welded in place.Because the pipe slips into the | |||||
| flange before welding,it has a low hub.The inside and outside of | |||||
| the flange are both welded,resulting in sufficient strengh and no | |||||
| leak. | |||||
| Size | |||||
| Plate flange:1/4"-160" | |||||
| DN8-DN4000 | |||||
| Pressure | |||||
| America Series:Class 150 ,Class 300, Class 600, Class 900 , | |||||
| Class 1500,Class 2500. | |||||
| Europe Series:PN2.5,PN6,PN10,PN16,PN25,PN40,PN63,PN100, | |||||
| PN160,PN250,PN320,PN400. | |||||
| Flange Facing Types | |||||
| America Series:Flat face(FF),Raised face(RF),Tongue(T),Groove(G), | |||||
| Female(F),Male(M),Ring type joints face(RJ/RTJ) | |||||
| Europe Series:Type A(Flat Face),Type B(Raised Face),Type | |||||
| C(Tongue),Type D(Groove),Type E(Spigot),Type F(Recess),Type G(O-Ring Spigot),Type H(O-Ring Groove) | |||||
| Material | |||||
| Carbon Steel: | |||||
| ASTM A105,A350 LF2,SS400,P235GH,P250GH,C22.8,Q235,20#,16Mn. | |||||
| Stainless Steel: | |||||
| ASTM A182 F304,F304L,F316,F316L,F321,F347,F310,F44,F51 etc | |||||
| Alloy Steel: | |||||
| ASTM A694 F42,F46,F52,F56,F60,F65,F70,A182 F5,F9,F91,F12,F11,F22 etc | |||||
| Standards | |||||
| ASME/ANSI B16.5,ASME B16.47,ASME B16.36,AWWA C207.DIN 2527,2573,2576,2631,2632,2633,2634,2635,2566,2642.EN 1092,BS 4504,JIS B2220,GOST 10820,10821 etc. | |||||
| Industrial Processes | |||||
| Die forging,Machining | |||||
| Check from website: | |||||
| http://www.steelfittings-flange.com/e_products/?big_id=4 | |||||
