Brand:Huaxi

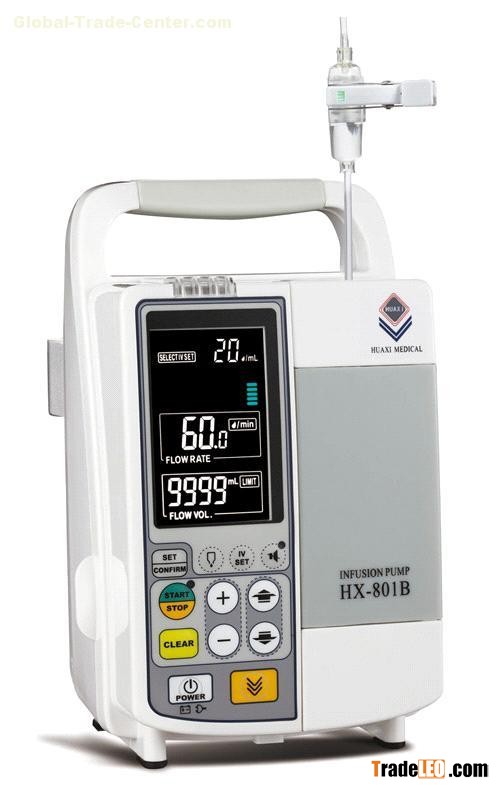

Model:HX-801B
MOQ:20 Sets
Send Inquiry
1. Infusion ModeDrip-rate2. Pumping MechanismPeristaltic finger pump3. IV SetsStandard IV sets of 10, 15, 20 and 60d/mL, with diameter 3.4 ~ 4.5mm.4. Flow Rate Range10, 15, 20 d/mL IV set: 1.0 ~ 999.9 mL/h; 60 d/mL IV set: 1.0 ~ 150.0 mL/h5. Drip Rate Range10 d/mL IV set: 1.0 ~ 166.6 d/min, 15 d/mL IV set: 1.0 ~ 249.9 d/min20 d/mL IV set: 1.0 ~ 333.3 d/min, 60 d/mL IV set: 1.0 ~ 150.0 d/min6. Increment0.1mL/h7. Flow Rate Accuracy≤ ± 5% (after calibration)8. Drip Rate Accuracy≤ ± 1.5%9. Volume Limit1 ~ 9999 mL10. Volume Infused Display0 ~ 9999 mL11. Purge Rate600 mL/h12. KVO Rate 1 mL/h13. Drip SensorInfrared optoelectronic detection14. Occlusion PressurePressure detection device with 8 sensitivities setting, 40 ~ 140KPa.15. Air-in-line DetectionAir bubble detected by ultrasonic and the device with 8 sensitivities setting, 50 ~ 1000μL.16. Alarm Volume8 levels setting17. Anti-reverse FunctionAnti-reverse function on motor to prevent upstream18. Self-checkSelf-check when start up and during infusion19. Audio and Visual AlarmsAir-in-line, Door open, Occlusion, Infusion finished, Pause overtime, Leakage, Empty, Low battery, Battery damaged, etc.20. DisplayColor LCD with high brightness21. Power SourceAC: 100V ~ 240V, 50Hz/60Hz, ≤ 25VA22. Battery Rechargeable Ni-MH battery: DC12V, 2000mAh, life: ≥ 4 hours at 25mL/h23. ClassificationClass Ⅱ, CF, IPX424. Dimensions and N.W.150mm x 150mm x 235mm; 2.3kg
