Brand:GAOFU
Model:SZF series
MOQ:1 Sets

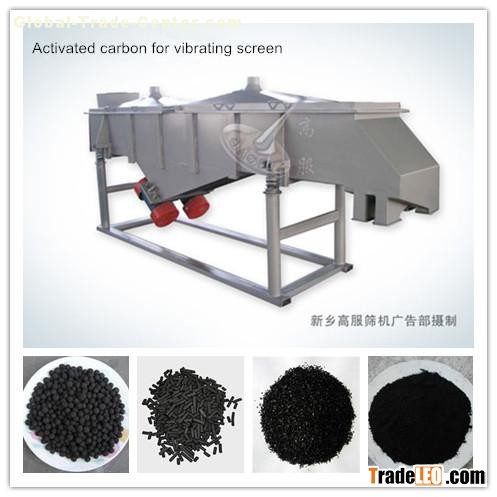

u Linear vibrating screen introduction:
SZF series Linear vibrating screen use vibration motor as vibration source, the materials is rosed and moved in the straight at the same time. The materials are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates.
Inlets, outlets and legs can be custom fit to your installation requirements
u Linear vibrating screen using range:
It is widely used for sieving fine particles and mealiness materials in abrasive , chemical industry, metallurgy ,building materials ,food and chemical fertilizer.
u Linear vibrating screen Features/Description:
1. High output.
2. simple structure
3. easy maintenance.
4. low energy consumption
5. small noise
6. full-enclosed structure
7. high screening efficiency
8. long life
9. energy saving , hing effiency
10. passed ISO 9001:2008
u Technical parameters:
| Model | Size(mm) | Material size(mm) | Inclination | Amplitude(mm) | Layer | Power(KW) |
| SZF-520 | 500×2000 |
0.074-10 |
0-7 degree |
4-10 |
1-6 layer | 2*(0.4-0.75) |
| SZF-525 | 500×2500 | 2*(0.4-0.75) | ||||
| SZF-1020 | 1000×2000 | 2*(0.4-0.75) | ||||
| SZF-1025 | 1000×2500 | 2*(0.4-1.1) | ||||
| SZF-1030 | 1000×3000 | 2*(1.1-1.5) | ||||
| SZF-1040 | 1000×4000 | 2*(1.1-1.5) | ||||
| SZF-1235 | 1000×3500 | 2*(1.1-2.2) | ||||
| SZF-1250 | 1200×5000 | 2*(1.1-2.2) | ||||
| SZF-1535 | 1500×3500 | 2*(1.1-2.2) | ||||
| SZF-1560 | 1500×6000 | 2*(2.2-3.7) | ||||
| SZF-1845 | 1800×4500 | 2*(2.2-3.7) | ||||
| SZF-2050 | 2000×5000 | 0.074-15 | 2*(2.2-3.7) | |||
| SZF-2260 | 2200×6000 | 2*(2.2-3.7) |
Note:
1. Each type can be 1-5 layers, and the mesh size is from 0.1 to 30mm.
2. Material: Q235A / SUS 304 / 316L
3. Voltage: 380V /400V, Frequency: 50 / 60 HZ.
Our Screen frame has two types: different screen frame structures, help you get more quality screening purpose!
Type 1. Stainless steel screen frame
Type 2. wooden screen frame
Our vibrating sorter are ready for pakage.
GAOFU company have a perfect after-sales service system and professional technology team to provide you with prompt and thorough service. Our price are more competitive and reasonable, each order will be supplied within the stipulated period.
Workshop
Your Professional Sale Consultant, Anna, waiting your inquiry!
