General description:

Imaging modes: B,B/B,B/M,M,4B,C,PDI,PW

Scanning mode : convex ,linear, endocavity

Gray scale levels: 256

Display: 15”high resolution LCD monitor

Transducer connector: 2 standard

Scanning depth: up to 351mm

Physical channels : 64

Transducer element : 28

Dynamic imaging technologies: Digital beam-forming

Digital frequency scan

Dynamic receiving focusing

Dynamic receiving apodization

Real-time dynamic aperture

Imaging processing:

Pre-processing: 8-segment TGC adjustment

Dynamic range (0-100)

frame correlation (0-7)

Edge enhancement(0-7)

Line density(high/mid/low)

Post-processing : Gray scale (0-14)

Scan angle up to 150

Left/right reverse

Up/down reverse

Function:

Zoom : 10tmes

Cine loop : up to 6400 frames

HDD: 500GB

Software function:

General measurement : distance ,circumference, area ,(trace/ellipse),volume ,etc.

Calculation package : abdomen, cardiac , gynecology , obstetrics ,urology,small parts (thyroid).etc.

Peripheral ports: two transducer ports

DVI (to connect to external monitor or project)

Video output

S video

LAN

Power input port

Foot switch

Standard configuration:

15”high definition LED monitor

Two transducer connectors

Back lit control panel

8-segment TGC

982-frame cine loop

Integrated 500GB hard disk

Internal lithium battery supporting normal diagnosis up to 1.5 hours

Inverted harmonic imaging

Pseudo color imaging mode

Annotation library for quick comment

Graph/text report function

DICOM storage SCU

User defined exam settings

User defined parameters capture (acquire set)

intuitive soft key at the bottom of screen , clicking supported

beam steering for better needle visualization

patient information management system

fetal trending-fetal growth curve graph

lithotripsy function supported

biopsy function supported

support polyembryony measurement up to six

intuitive context dependent soft key

USB image transfer and software upgrade

Language of UI: Chinese, English

3C6C convex array transducer (2.5/3.5/4.5/H5.0/H6.0MHz)

Options :

3C6C convex array transducer (2.5/3.5/4.5/H5.0/H6.0MHz)

7L4C linear array transducer (6.5/7.5/8.5/H9.0/H10MHz)

6E1C endocavity transducer (5.0/6.5/8.0/H8.0/H9.0MHz)

8L4C high frequency linear probe

6C1C micro convex probe

6I7C rectal linear probe

Needle – guided brackets

Home charger and Cararger

Wireless data transfer function

USB water-resistant footswitch

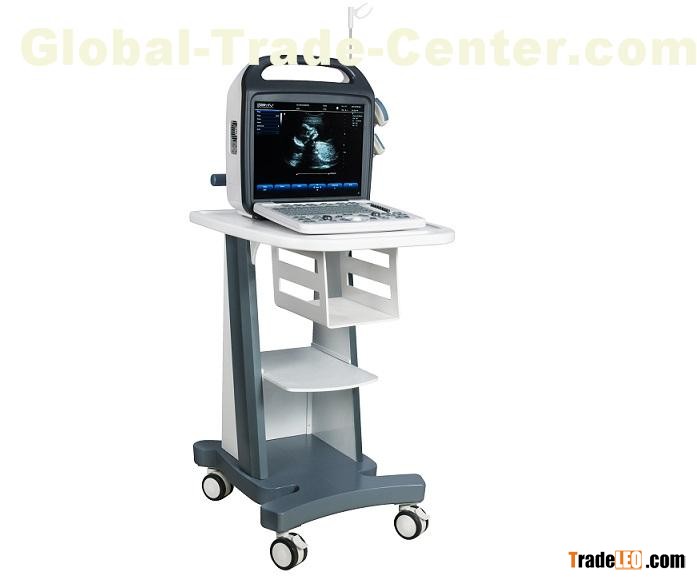

Mobile trolley

Wheeled transport case

Others:

Net weight : approx.8.5 kg

Power supply : 100~240VAC , 50Hz/60Hz

Dimensions : 400mm×394×172mm
