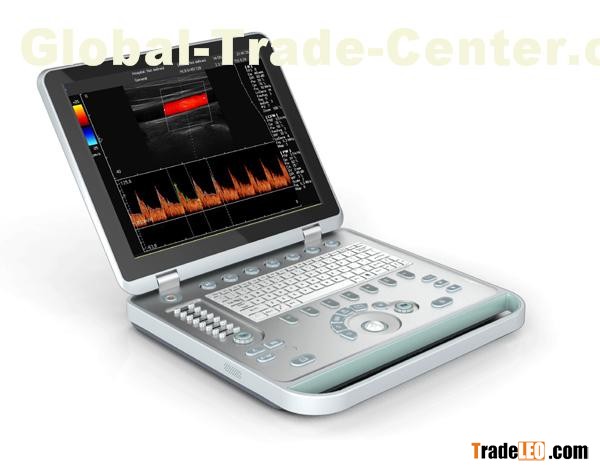

Laptop color Doppler ultrasound system:

15’’LED screen

High definition image

Very thin , light and pretty

3D/4D imaging (option)

Abundant functions , multilingual

Hardisk ,USB storage

B, M , CF, PWD , PD , PDP , THI , TDI ,real-time M ,CWD

Image Model :

B,M,CF,PWD,PD,PDP,THI,TDI, real-time M ,CWD

2D and M Model:

Gray scale ≥256

Gain adjustment :distance from gain compensation ≥ 8 segments

2D scanning rate: full-field ,18cm depth , rate of scan frame : ≥30 frames/sec

Scanning depth : ≥30cm

The image playback reproduce : ≥50frames

Manual visualization adjustable focus ≥ 4segments

Display :B/M,B/D,B/CD,B/D/CD can be displayed on the same screen

Dynamic and static images can be zoomed promise and intelligently

Original  data movie playback , dynamic video>10 minutes

Image save and management :

With the function of storaging dynamic and static images in real-time internal hard disk , the host built-in hard disk 320G.

Have images online clipboard function : real-time scanning , only one-button operation , can store the dynamic and static ultrasound images in the clipboard which on the one side of the screen , can be took out to compare and observe.

The brightness , contrast , Doppler baseline sampling angle for offline playback of dynamic and static image can be adjusted , and images can be converted to avi , tif , Bmp, and other common format (standard).

With USB interface , S-VIDEO , VGA , network transmission image interface etc.

With state-of-the-art , convenient direct network , teal-time image can be exchanged , storage and played back.

Color Doppler :

Display mode : speed display , energy display

Color scanning rate : 18cm depth ,scan range is 85°angle , color full-field , rate of scan frame≥ 10 frames/sec

Color enhancements :color Doppler energy diagram , direction speed diagram

Display position adjustment : interested range of linear array scanning :-20°~+20°

Display control : up/down , left/right flip ,color contrast ,zero movement

Have pseudo-color function

Spectrum Doppler:

Spectrum Doppler mode: pulse Doppler PWD , optional continuous Doppler CED

Highest measuring flow rate: the highest measuring flow rate of unidirectional pulsed Doppler ≥6m/s ; the continuous Doppler unidirectional highest measurement flow rate ≥15m/s

PWD lowest measuring flow rate :≤5mm/s(not noise signals)

Spectrum has function which can automatically envelope measuring and calculation

PWD and CWD image can be frozen for movie playback

Sample volume width and position adjustment : 0.5-20mmgraded adjustment

Zero mobile : ≥level 6

Reverse display control :with

Have the function of Doppler sampling then correct angle

Display control :reverse display (up and down , left and right),scanning angle three adjustable , local amplification (steeples smart zoom).

Measurement and calculation:

General measurement : distance perimeter , area, slope ,heart rate , pressure, residual urine , RI ,PI ,flow rate , etc.

Obstetrics and gynecology –specific measurement software: fetal gestational age , pre-production period，estimate fetal weight , multiple measurements were averaged ,S/D ratio

Vascular measurement , analysis calculation and reporting

Spectral Doppler analysis and calculation software

Heart function , vascular measurement analysis software :ejection fraction (EF), left ventricular volume, cardiac output , the amount of (CO),) pressure drop half time (PHT)MTPG, Qp/Qs , velocity integral body surface area , ICA/CCA diameter radio , narrow percentage measuring calculation function , etc.

Measurement parameters can be edited , added, deleted customize if need.
