Brand:Perlong
Model:PLX112C
MOQ:1 Barrels

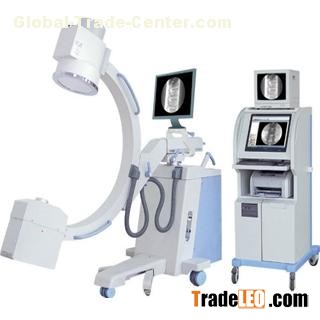

c arm x ray machine
Medical c arm x ray equipment
High Frequency mobile c-arm system is a kind of mobile x ray machine
c arm x ray machine is a kind of x ray machine
This main shape of mobile c arm x ray unit looks like the c arm
Technical parameters of c arm x ray machine
| PLX112C |
|
|
| Category | Item | Contents |
| Fluoroscopic Capacity | Max rated capacity | 5KW |
| Fluoroscopy Methods | Automatic, Manual,Pulse | |
| Tube Voltage | 40KV-120KV | |
| X-ray Tube | Thermal Capacity | 650KJ |
| Video System | imported Image Intenfisier | Made by TOSHIBA(9",6",4.5") |
| Structure | Direction-wheel | ±90° rotation |
| Ascending&dedcending range of pillar | ≥400mm |
Usage of c arm x ray machine
Orthopaedics: Osteopathy, diaplasis, nailing
Surgery: Removing foreign body, cardiac catheter, implanting pace maker, interventional therapy, partial radiography, local photography, and other work.
Features of c arm x ray machine
1. Leading domestic level Mobile Surgical X-ray machine. Real continuously pulse fluoroscopy 25fps. Convenient connection with the Digital system.
2. One million pixels CCD camera makes the image more distinct.
3. World-class image processing technology software makes the image more distinct to make it more convenient for the doctors in the operation and diagnostic process. Standard DICOM interface makes it convenient to connect with the hospital information system.
4. The pulse fluoroscopy can obtain high -definition image from low dose to meet the requirement of the high-precision and high difficulty microinvasive operation
5. Low radiation dose used can protect the doctor and patient.
6. Unique double foot brake controller design makes it convenient to control the instrument inside and outside the operation room. This design can also protect the health care professionals by reducing the opportunity to come into contact with the radiation.
7. Exclusive inside and outside monitor design makes it more convenient to observe the operation process either inside or outside the operation room. At the same time, this design can facilitate the outdoor teaching and the real-time observation of the surgical procedures.
8. Uniquely designed basement electric auxiliary supporting arm, ensuring safer use.
9. Specially designed portable controller, facilitating operation.
10. New-pattern frame design with a small and pleasing shape.
11. High-quality combined with HF-HV x-ray generator, greatly reducing x-ray expose.
