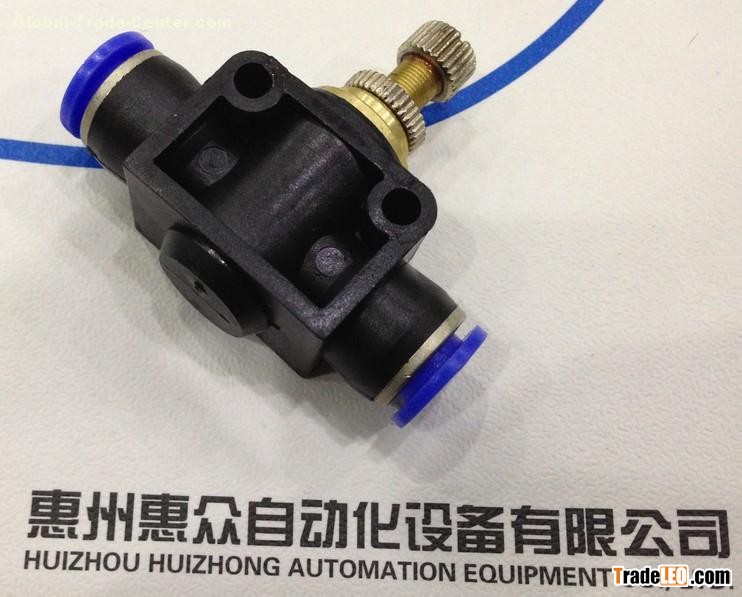

Brand:HVIZ,OEM
Model:HLSA series
MOQ:1000 Pieces
Specifications:
| Fluid | Air(No other gases or liquids) | |
| Operating Pressure | 0~150PSI | 0~9.9Kgf/cm²(0~990KPa) |
| Negative Pressure | 7.5PSI | 0.5Kgf/cm²(50KPa) |
| Operating Temperature | 32~140°F | 0~60°C |
| Applicable Tube | Polyurethane and Nylon | |
1. Size:
| MODEL(Φ D) | |
| Tube(Metric) | Tube(Inch) |
| HLSA04 | HLSA5/32 |
| HLSA 06 | HLSA 1/4 |
| HLSA 08 | HLSA 5/16 |
| HLSA 10 | HLSA 3/8 |
| HLSA 12 | HLSA 1/2 |
2. Feature:
.Accurate regulation of an optimal airflow rate for precise motion control.
.The compact design provides the comparable rang of speed as the larger ones do.
.Control-out and control-in types are available for all models.
.All R and NPT threads are pre-coated sealant.
. All cylindrical threads are standard with O-Ring seals.
Trade mark: HDY ,neutral ,or OEM brand
