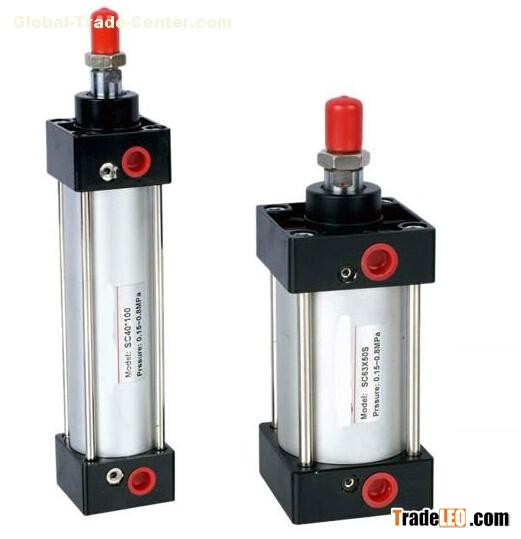

ISO 9001 SC series (Airtac series) pneumatic cylinder
Specifications
1)bore from 32mm~200mm, stroke from 25mm~1000mm
2)ISO SC series pneumatic air cylinder
3)competitive price
4)fast delivery
1)bore from 32mm~200mm, stroke from 25mm~1000mm
2)ISO SC series pneumatic air cylinder
3)competitive price
4)fast delivery
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 |
| Operating Pressure Range | Double acting | |||||
| Fluid | Air | |||||
| Mounting | Basic, FA, FB, CA, CB, LB, TC, TC-M | |||||
| Operating Pressure | 1-10 bar | |||||
| Proof Pressure | 15 bar | |||||
| Operating Temperature | 0 ~ 70 °C | |||||
| Operating Speed Range | 50 ~ 800mm/s | |||||
| Cushion | Adjustable cushion | |||||
| Cushion Stroke | 20 | 26 | ||||
| Port Size | G1/8 | G1/4 | G3/8 | G1/2 | ||
