Brand:HVIZ,OEM
Model:HPX
MOQ:1000 Pieces

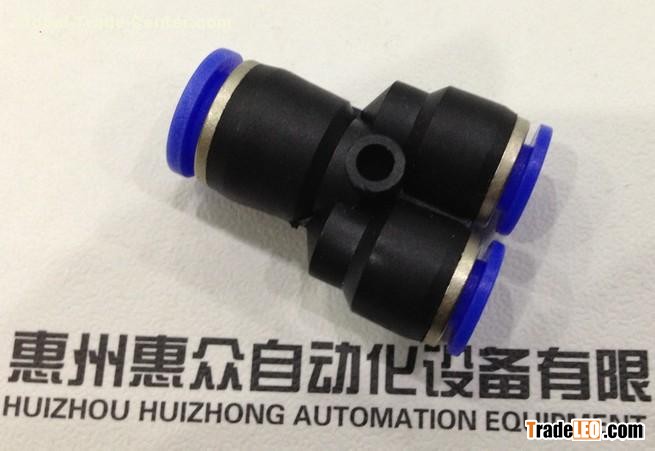

PX Branch One Touch Y Brass Zinc NPT Thread Pneumatic Tube Fittings
Material of Construction:
| IF PLASTIC BODY | PBT (POLYBUTYLENE TEREPHTHALATE |
| IF metaL BODY | BRASS WITH NICKEL PLATED (WHITE) or BRASS COLOUR (YELLOW) |
| RELEASE BUTTON (SLEEVE) | IF PLASTIC: POM (POLY OXY METHYLENE COPOLYMER) IF metaL: BRASS WITH NICKEL PLATED (WHITE) or BRASS COLOUR (YELLOW) |
| GRIP RING | STAINLESS STEEL (very import part, with nice quality) |
| THREAD SEALANT (some only sleeve no thread) | IF PT THREAD, WE WILL BRUSH TEFLON (SNOW WHITE COLOUR) IF NPT THREAD, WE WILL BRUSH TEFLON (SNOW WHITE COLOUR) IF BSP THREAD, IT WILL BE WITH O-RING |
| O-RING | NBR (BUNA-N) |
Specifications
WORKING PRESSURE: 0-150PSI
WORKING TEMPERATURE: 0-60 °C
WORKING FLUID: AIR, WATER, GAS
TUBING CONNECT: POLYURETHANE, NYLON, POLYETHYLENE, POLYPROPYLENE
PRODUCTION CAPACITY: MORE THAN 5000000PCS EVERY MONTH
MARKET AREA: ALL OVER THE WORLD
Product shape:
STRAIGHT, ELBOW, TEE, BANJO, Y SHAPE, CROSS, AND SO ON.
Product size:
If with sleeve:
the size is 4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm,13mm,14mm,15mm,16mm
(INCH SIZE: 3/16, 1/4, 5/16, 3/8, 1/2, 5/8 and so on) (METRIC SIZE: M3,M4,M5,M6,M7,M8,M9,M10)
If with thread:
the size is 1/8, 1/4, 3/8, 1/2 ( R THREAD, NPT THREAD, BSP THREAD)
NOTED: R THREAD = PT THREAD, BSP THREAD = G THREAD
