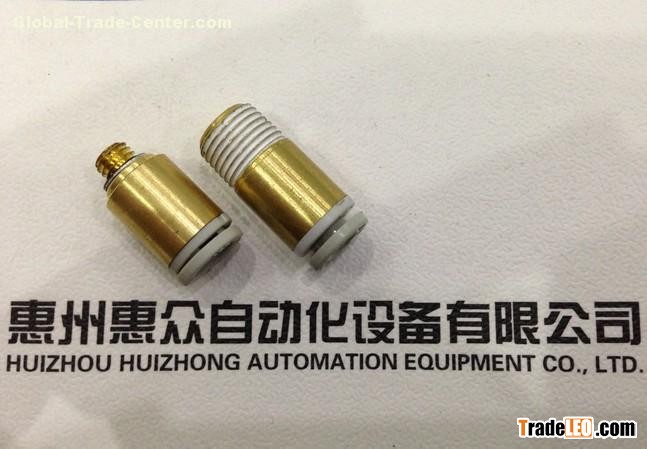

PCF series femail straight pneumatic fitting
2016-09-27 17:20 Views:225
Price:
0.05 USD/Pieces
Brand:HVIZ,OEM
Model:PCF
MOQ:1000 Pieces
Send Inquiry
PCF series Female Straight
| Media | Compressed air , vacuum |
| Proof, pressure | 1.32Mpa (13.5kgf/cm2) |
| Pressure range | Positive pressure | 0-0.9Mpa (0-9.2kgf/cm2) |
| Negative pressure | -99.99~0Mpa (-750~0mmHg) |
| Ambient & fluid temperature | 0-60°C |
| Recommended tubes | Urethane tube , nylon tube |
| Sales units | 1 package (set of 10) | Inch type | Meter type | ΦD | R | A | B | H | | PCF5/32-M5 | PCF4-M5 | 4 | M5 | 6.5 | 24.4 | 10 | | PCF5/32-01 | PCF4-01 | 4 | R1/8 | 9 | 26.6 | 10 | | PCF5/32-02 | PCF4-02 | 4 | R1/4 | 11 | 28.8 | 15 | | PCF1/4-M5 | PCF6-M5 | 6 | M5 | 6.5 | 24 | 12 | | PCF1/4-01 | PCF6-01 | 6 | R1/8 | 9 | 28 | 12 | | PCF1/4-02 | PCF6-02 | 6 | R1/4 | 11 | 30 | 15 | | PCF1/4-03 | PCF6-03 | 6 | R3/8 | 12 | 30.5 | 19 | | PCF1/4-04 | PCF6-04 | 6 | R1/2 | 12.5 | 31.5 | 24 | | PCF5/16-01 | PCF8-01 | 8 | R1/8 | 9 | 28.5 | 14 | | PCF5/16-02 | PCF8-02 | 8 | R1/4 | 11 | 30.5 | 15 | | PCF5/16-03 | PCF8-03 | 8 | R3/8 | 12 | 31 | 19 | | PCF5/16-04 | PCF8-04 | 8 | R1/2 | 12.5 | 32.5 | 24 | | PCF3/8-01 | PCF10-01 | 10 | R1/8 | 9 | 32.4 | 17 | | PCF3/8-02 | PCF10-02 | 10 | R1/4 | 11 | 34 | 17 | | PCF3/8-03 | PCF10-03 | 10 | R3/8 | 12 | 34 | 19 | | PCF3/8-04 | PCF10-04 | 10 | R1/2 | 12.5 | 35 | 24 | | PCF1/2-01 | PCF12-01 | 12 | R1/8 | 9 | 35 | 19 | | PCF1/2-02 | PCF12-02 | 12 | R1/4 | 11 | 35 | 19 | | PCF1/2-03 | PCF12-03 | 12 | R3/8 | 12 | 35 | 19 | | PCF1/2-04 | PCF12-04 | 12 | R1/2 | 12.5 | 36.5 | 24 | | | PCF14-03 | 16 | R3/8 | 16.5 | 46.4 | 24 | | | PCF14-04 | 16 | R1/2 | 18 | 48.4 | 32 | |
