Brand:Glory
Model:1/2",3/4".1".5/8"
MOQ:300 Square Met

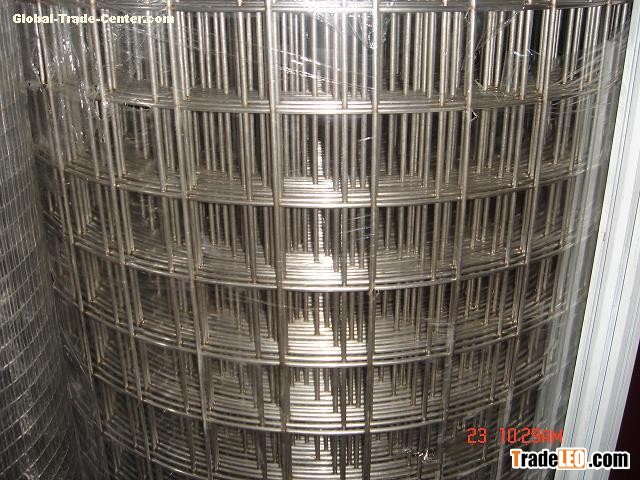

Stainless Steel Welded Wire Mesh
The Stainless Steel Welded Wire Mesh is producting of SS wire to Welded for The mesh , The hole or mesh smooth ,nice surface and strong structural .Never no rust .better than galvanied welded wire mesh. The Small wire dia. can done the roll mesh ,Called Stainless Steel welded mesh . The Large wire dia. ,can welded the panel or sheet ,then named Stainless Steel welded wire mesh panel or Stainless Steel welded mesh sheet .
Material : stainless steel wire SS201.SS202.SS302.SS304. SS 304L .SS 316 SS 316L
Characteristics:
It has the good property of corrosion-resisting and oxidation-resisting.
Specification
| Mesh | Wire Diam | ||
| Inch | mm | BWG | mm |
| 1/4" × 1/4" | 6.4mm × 6.4mm | 22# - 24# | 0.7mm - 0.6mm |
| 3/8" × 3/8" | 10.6mm × 10.6mm | 19# - 22# | 1.0mm - 0.7mm |
| 1/2" × 1/2" | 12.7mm × 12.7mm | 16# - 23# | 1.6mm - 0.6mm |
| 5/8" × 5/8" | 16mm × 16mm | 18# - 21# | 1.2mm - 0.8mm |
| 3/4" × 3/4" | 19.1mm × 19.1mm | 16# - 21# | 1.6mm - 0.8mm |
| 1" × 1/2" | 25.4mm × 12.7mm | 16# - 20# | 1.6mm - 0.9mm |
| 1" × 1" | 25.4mm × 25.4mm | 14# - 21# | 2.0mm - 0.8mm |
| 11/2" × 11/2" | 38mm × 38mm | 14# - 19# | 2.0mm - 1.0mm |
| 1" × 2" | 25.4mm × 50.8mm | 14# - 16# | 2.0mm - 1.6mm |
| 2" × 2" | 50.8mm × 50.8mm | 12# - 16# | 2.6mm - 1.6mm |
| Technical Note: Special specifications can be customized. | |||
Usage: It is widely used on the industry, agriculture, building, transportation, mine, field, lawn, cultivation, Profession’s guard,
decorate, machie protection etc.
