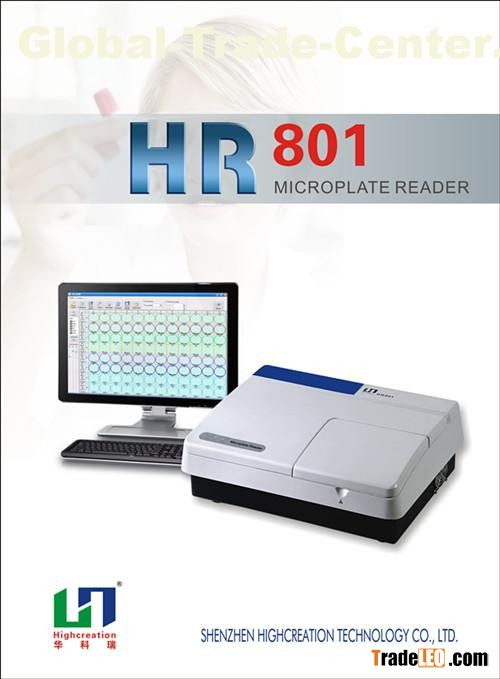

icroplate Reader HR801

  Application

   It is mainly used to do imminity detection and microanalysis in chemistry and biochemistry in hospital and relevant clinical laboratory. And it’s a useful tool for determining serum antibody concentrations and food allergens.

Features:

●        PC computer operation, convenience operation. External print reports, print patients with multi-format test report.

●        Humanized menu, support in English language.

●        Visible and flexible set plate, the position and quantity of blank, comparison, standard and sample can be set

●        Single-board multi-item testing, 96 kinds of quantitative or qualitative testing can be done simultaneously on the same plate, item wavelength can vary.

●        Automatic single/double wavelength examination, support many kinds of qualitative or measurable analytical models.

●        Large-capacity hard disk, store tens of millions testing results and call out or print out momentarily.

●        Arbitrary choice of open programming, reagents, reaction plate.

●        The instrument has a self-test and calibration function.

●        Comes with no less than 15 kinds of calculation methods.

●        The tray design of patent

Specification:

h      Microplate Types: Flat bottom，U-shaped，V-shaped 96well plate

h      Measurement system: 8 channel optical system

h      Wavelength range: 400-750nm

h      Filter: 405,450,492,630nm, and four optional

h      Vibration: Variable speed and time shaking mode

h      Reading range: 0-4.0Abs

h      Repeatability: ≤0.3%

h      Stability: ≤±0.005Abs/10min

h      Difference of channels: ≤0.015Abs

h      Linear R:≥99.9%

h      Reading speed: 5sec single wavelength,10sec double wavelength

h      Interface: Serial port RS-232
