Brand:protech
Model:PT-1200X
MOQ:-0 -

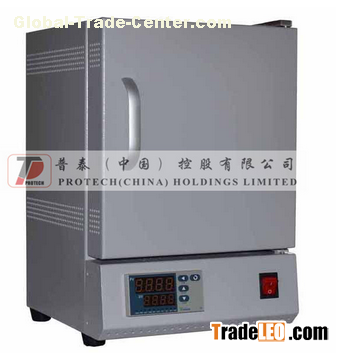

PT-1200X Laboratory Muffle furnace
Heated by MoSi2 rod,
Max. temp., 1200C; Working temp., 1100C.
Model: PT-1200X Muffle furnace
Size: 200*200*200mm (8"x8"x8"), (WxHxD)
Features
1. Operation Temperature: 1100C ( 1200C for short time).
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Three sides resistance wire coil for fast and uniform heating.
4. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
5. 0.5" diameter observation window made of quartz glsss, allows users to see inside chamber during heating operation.
6. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
7. Power control with 30 segments programmable.
8. Vent port (gas outlet) installed on the top for gas flow.
Descriptions:
| Chamber Size | 200x200x200mm (WxHxD) |
| Working Temperature | 1100C |
| Maximum Temperature | 1200C |
| Heating Rate | 0~15C/min (suggestion: ≤10C) |
| Temperature Accuracy | +/-1C |
| Temperature Controller | 30 steps programmable and auto control |
| Heating Element | Resistance Wire |
| Voltage | AC 220V, Single Phase, 60/50 Hz (or according to your requirement) |
| Max. Power | 4 KW |
| Outside Size | 550 x 540 x 820 mm |
| Net Weight | 100 Kg |
Note: there are different chamber sizes for your choice.
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: T/T, West union, etc.
Shipping and Delivery: by air/sea, in 15 days after receiving the payment
Warranty: 1 year limited warranty on all electronic parts.
