Brand:protech
Model:PT-1200RT
MOQ:-0 -
Features:

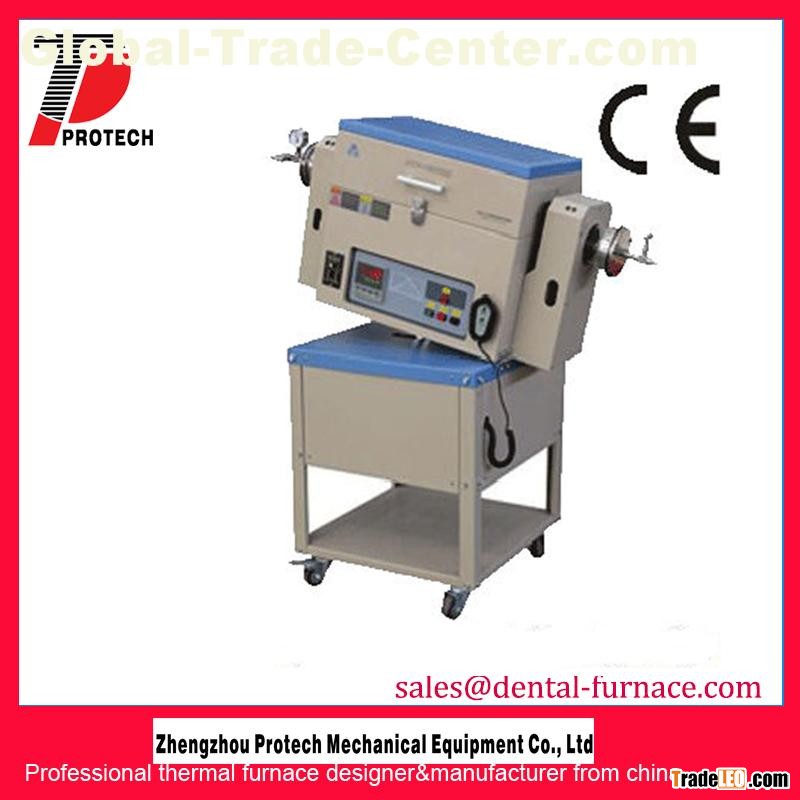

1. Single zone rotary tube furnace is designed for calcining inorganic compound with better unifiormity, esp. excellent for preparing Li-Ion battery cathode materials with conductive coating, such as LiFePO3, LiMnNiO3, etc in R&D Laboratory.
2. Double shell casing with three cooling fans.
3. High purity Alumina fibrous insulation for max. energy saving.
4. The furnace can be tilted up to 30o by electric lift.
5. Split cover enable faster cooling and easy operation.
Descriptions:
| Heating Zone Size | 400mm (16”) |
| Constant temperature zone | 120mm |
| Working Temperature | 1100℃ |
| Temperature Control | 30 steps programmable and PID automatic control |
| Temperature Accuracy | +/-1℃ |
| Tube rotating Speed | 0-7 RPM variable |
| Furnace tilt angle | 0-35° |
| Heating Element | Resistance wire |
| Working Voltage | AC 220V, Single Phase, 60/50 Hz (or according to your requirement) |
| Max. Power | 2.5 KW |
| Outside Size | 1300×600×1200mm |
| Net Weight | 100 Kg |
| Gross Weight | 150 Kg |
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: L/C, T/T, West union, etc.
Shipping and Delivery: by air/sea, in 15 days after receiving the payment
Warranty: 1 year limited warranty on all electronic parts.
