Gynecology Surgical laser instrument

Specifications
Gynecology Surgical Laser

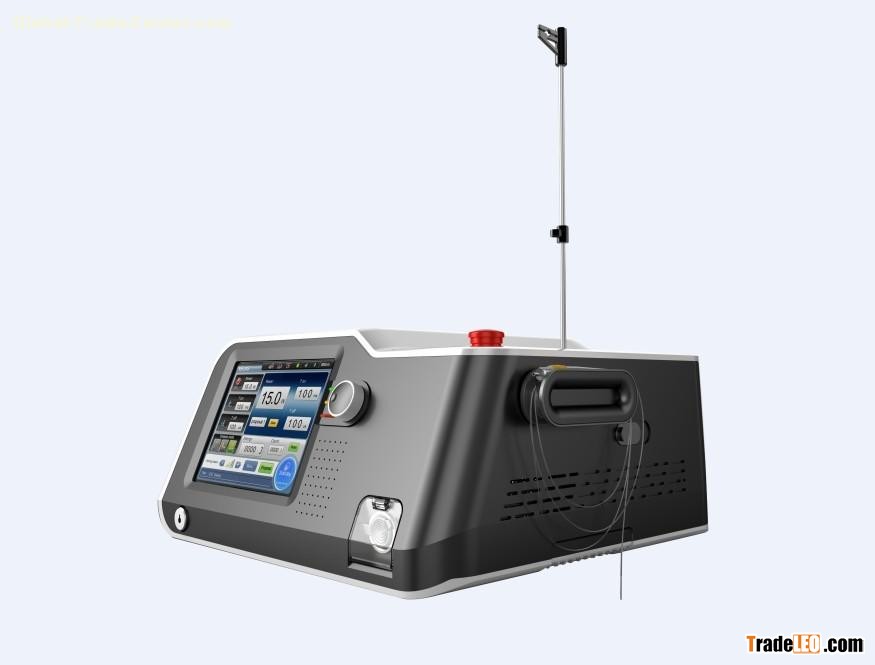

60W Gynecology Surgical Diode Laser

The VELAS series from GIGAA LASER offer you a multiple choice for your different clinic requirements. Surgical applications require a technology that offers equally effective ablation and coagulation options.

Applications:
Feto-Fetal Transfusion Syndrome (Twin-to-twin-syndrome)
Closure of the pathologic vessels of the placenta with a 980nm laser in non-contact mode

Cervical erosion, leukoplakia vulvae, condyloma acuminatum, fallopian tube recanalization, ovarian wedge resection, oophorocystectomy, salpingoplasty, hysteromyomectomy, oophorectomy, hysterectomy, endometrectomy.

Main Advantages
* based on the experienced R. D, administration team, Gigaalaser Focuses on the medical diode laser system and accessories for application in a wide range of medical specialties. * Using the perfect Chinese resource industry, we provide the high quality and the cost effective new type medical laser systems to the clients all over the world.
* New friendly used protocol
* Big color touch screen
* Output power calibration at the end of fibers
* Highly integrated and modular design
* New design inside to make maintenance easy and low cost
* High quality and reliability

Technical Parameters:
. Wavelength: 980
. Laser output power: 60W
. Output modes: CW, Single or Repeat Pulse
. Pulse Duration: 10us-3s/10ms-3s
. Transmission System: Fibers of 200um, 400um and 600um with SMA 905 connector(200um only could be used on VELAS15B)
. Aiming Beam: Red Diode Laser of 635nm, power less than 5mW
. Control mode: True color touch screen
. Vlotage/Current rating: 110V/220VAC, 5A, 50/60Hz or 110VAC/5A, 220VAC/10A, 50/60Hz
. Dimensions: 400(W)X385(L)X200(H)mm
. Weigth: 12.9Kg/13.4Kg
