Brand:JS
Model:-
MOQ:10 Pieces
Send Inquiry

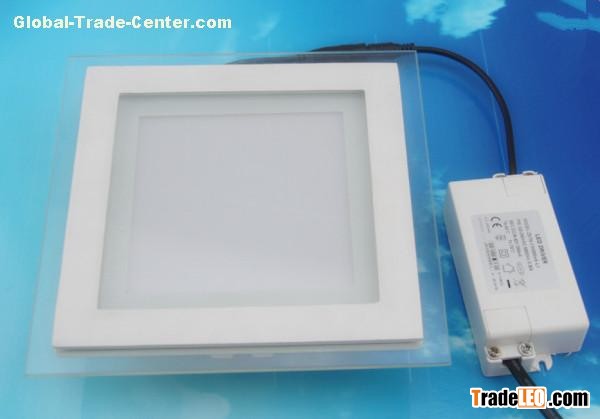

Square led ceiling light Parameter
| LED Source | SMD2835 | ||
| CCT | WW(2800-3200K)/NW(5500-6000K)CW(6500-7500K) | ||
| Input Voltage | 100-240VAC | ||
| Power(W) | 6±4W | 11±4W | 15±5W |
| Hole Size(mm) | 130*85 | 158*110 | 182*135 |
| LED Qty: | 30pcs | 60pcs | 75pcs |
| Note: | with plastic on side of it(white+blue)can control color(centre/out ring) | ||
10W Product Description
1,Voltage:AC100-865V
2,Centre Color:2700-6500K Out ring:Blue
3,Out Dia:130mm Inner Dia:85mm
4,Blue Light:2.5W 47mA 9lm
White Light:6.5W 103mA 450LM
White+Blue:10W 136mA 470LM
5,Working temperture:-40~+50
Operating Instruction
power on/off the funcation will be as below:
1, on
main light for white color
off
2, on
the blue color for out ring
off
3, on
the main light and blue will be light on together
