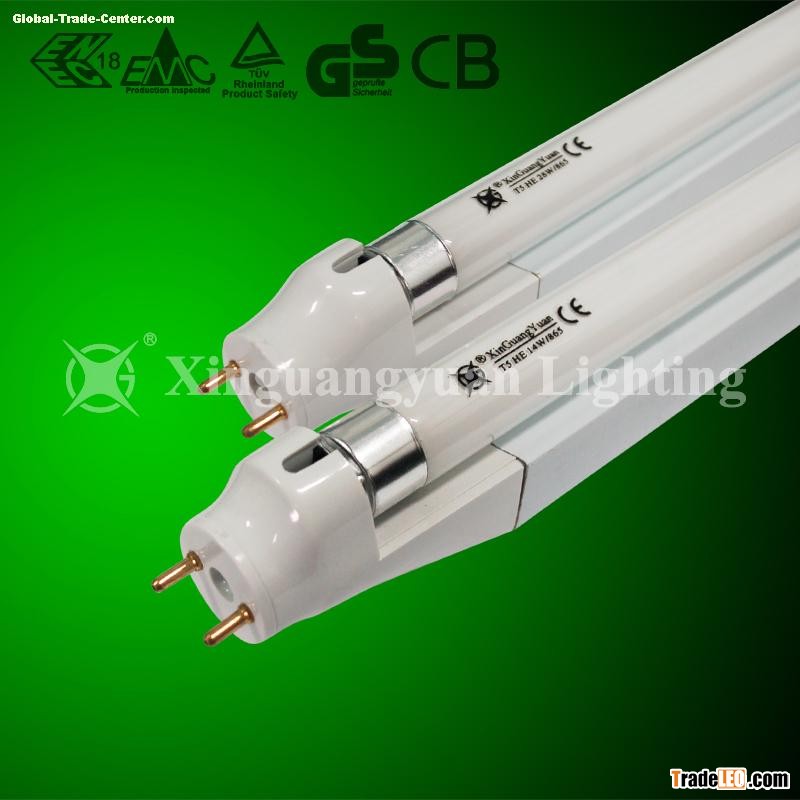

T5 Adaptor Kit is a complete conversion system that can be used to directly replace the existing T8, or T10, or T12 Lamp with electromagnetic ballast.

- Up to 45% energy saving over equivalent T8 lamps and more for T10 or T12 lamps;

- Direct retro-fit for T8, or T10, or T12 lamps, no electrician required;

- At least 10% extra lumen outputcompared with T8, or T10, or T12 lamps;

- No flickers and better CRI;

- Especially suitable for the T8 grille lamp fixture;

Product Features:

- 0.4mm Thick Aluminum Body Material, choice of white powder coated, or luster, or matte;

- PC Anti-Flaming Lamp Holder

- Nano-meter Anti-oxidation Film on the aluminum reflector,more brightness

- T5 Tri-phosphor Tube Included, choice of 10,000h or 20,000h

- Horizontal and Vertical Installations

- Protection Class II

Ballast Available:

- Voltage Choice Available:

² 220-240V, 50/60Hz

² 110-120V, 50/60Hz² 90-260V, 50/60Hz

- Ballast Parameters Available:

² IC Standard Ballast,≥0.99, THD≤10%, Life = 30,000 hours, TUV CE, CB, GS, ENEC, UL Certified;

² TUV Standard Ballast, PF≥0.98, THD≤15%, Life = 20,000 hours, TUV CE Certified;

² Normal High Standard Ballast, PF≥0.95, THD≤30%, Life = 15,000 hours, Pass EMC and LVD Testing;

² Normal Low Standard Ballast, PF≥0.55, THD≤130%, Life = 15,000hours, Pass EMC and LVD Testing;

Instructions

- 1) Turn off the power; 2) Remove the T8 tube and starter; 3) Install the T5 adaptor kit; 4) Switch on

Packing:

1) One piece in one polybag;

2) One polybag in a individual carton;

3)25pcs in a standard export carton
