Brand:-
Model:JXL-201
MOQ:-0 -

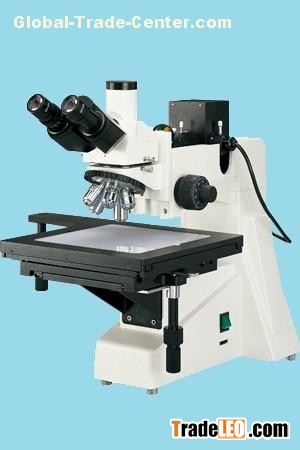

JXL-201 series reflected metallurgical microscopes are suitable to observe the microscopical surfaces of non-transparent object. They are equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular. They have clear and high-contrast picture beautiful sculpt, convenient control and etc. they are the ideal instrument in research work in metallography, mineralogy, precision engineering, electronics and etc. They are suitable for scientific research, teaching demonstration in the colleges and factory.
| Model | JXL-201 | JXL |
| Eyepiece | Wide field WF10X( | |
| Objective | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | ||
| Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 | ||
| Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 | ||
| Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80 | ||
| Eyepieces tube | Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch) | |
| Vertical illumination unit | 6V 20w, halogen lamp, adjustable brightness | |
| Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter | ||
| Focus system | Vertical adjustable, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing2μm. | |
| Nosepiece | Quintuple(Frontward ball bearing inner locating) | |
| Stage | Three layer mechanical Size:250mmX | Three layer mechanical Size:280mmX |
