2012 New Product! Professional Metallurgical Microscope
2016-09-27 22:35  Views:129
Price:0.00 USD/Sets
Brand:TEST
Model:TT-2003A
MOQ:1 Sets
Send Inquiry



The Main Technical Parameter:

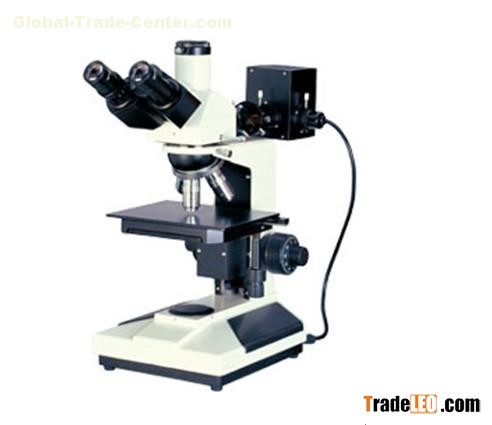

Model: TT-2003A   industrial metallurgical microscope
Eyepiece  WF10X(Φ18mm)
Objective PL 5X/0.12,  PL L10X/0.25,   PL L20X/0.40,   PL L40X/0.60
Viewing head  Trinocular inclined 30' (built-in check polarizer can be switched)
Epi-illumination system

6V 20W, halogen bulb ,  light intensity continuously adjustable,

Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System with blue, green, yellow and ground glass filters
Focusing mechanism Coaxial coarse focusing, Micro-grid values:2μm, Crude elastic adjustable , With lock and stopper
Stage two ply mechanical stage (size:185mmX140mm, moving range:75mmX50mm)
